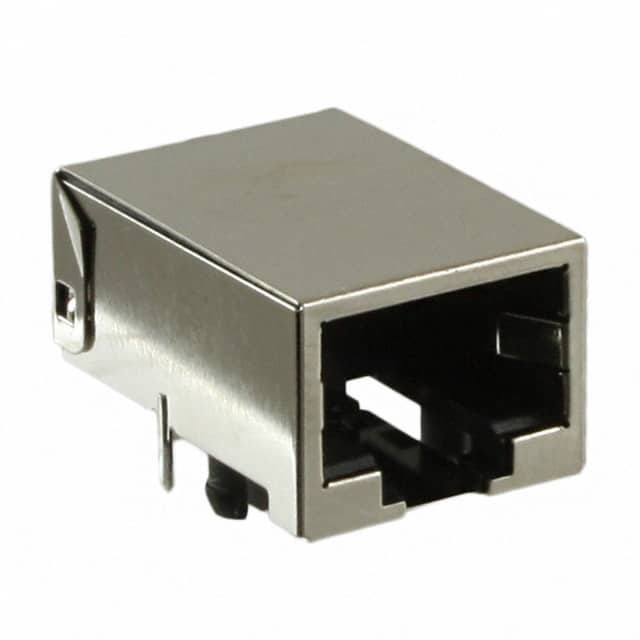

44661-0011

SKU: 116238

Manufacturer: Molex

Conn RJ-45 F 8 POS 1.27mm Solder RA Thru-Hole 8 Terminal 1 Port Modular Jack 8/8, RJ45 Cat 5/Cat 5e

1110 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
Automotive	No
PPAP	No
Type	RJ-45
Gender	F
Number of Terminals	8
Number of Contacts	8
Number of Ports	1
Number of Loaded Positions	8
Category Number	Cat 5/Cat 5e
Termination Method	Solder
Terminal Pitch (mm)	1.27
Body Orientation	Right Angle
Current Rating-Max(A)	1.5/Contact
Voltage Rating-Max	150V
Insulation Resistance (MOhm)	500
Maximum Contact Resistance (mOhm)	25
Mating Cycle (Cycles)	750
Integrated Magnetics	No
Shell Body Material	Brass
Shell Plating	Nickel Over Copper
Operating Temperature-Min	-40
Shielding	Yes
Operating Temperature-Max	85
Product Style	Single
Product Weight (g)	3.668
Length (mm)	15.06
Depth (mm)	20.78
Height (mm)	11.23
Tradename	Modular Jack 8/8, RJ45
Spring Option	Yes
Tab Direction	Down
Distance Between Begs (mm)	11.3
Distance Between Shield Pins (mm)	14.88
