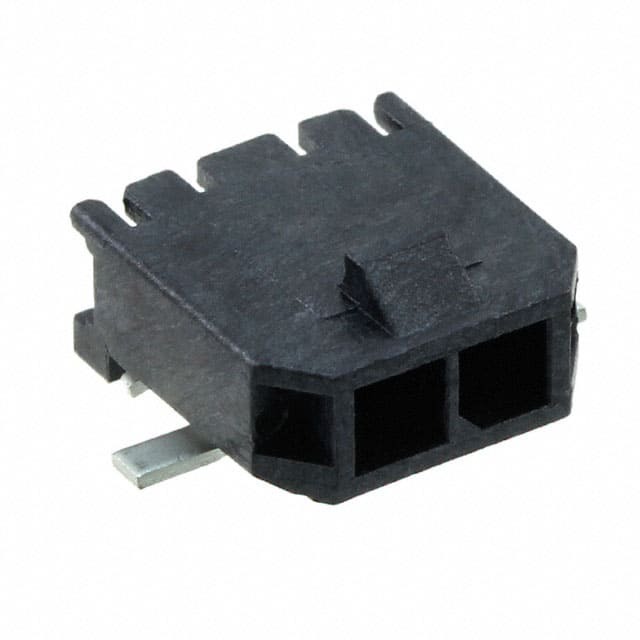

43650-0214

SKU: 121694

Manufacturer: Molex

Conn Wire to Board HDR 2 POS 3mm Solder RA Top Entry SMD Micro-Fit 3.0™ T/R

2000 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8536.69.80.00
Automotive	No
PPAP	No
Type	Wire to Board
Gender	HDR
Number of Contacts	2
Number of Rows	1
Termination Method	Solder
Terminal Pitch (mm)	3
Body Orientation	Right Angle
Polarization Type	Center Key
Current Rating-Max(A)	8.5/Contact
Voltage Rating-Max	600VDC
Insulation Resistance (MOhm)	1000
Maximum Contact Resistance (mOhm)	10
Operating Temperature-Min	-40
Operating Temperature-Max	125
Mating Cycle (Cycles)	30
Packing Method	Tape and Reel
Product Weight (g)	0.557
Length (mm)	13.65
Depth (mm)	10.7
Height (mm)	5.57
Tradename	Micro-Fit 3.0™
Contact Plating Thickness	(0.76/1.27)um
