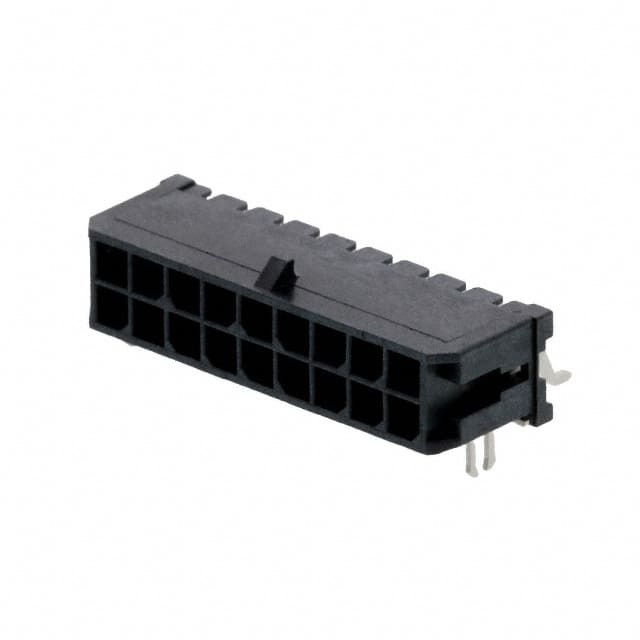

43045-1807

SKU: 137577

Manufacturer: Molex

Conn Power HDR 18 POS 3mm Solder RA SMD 18 Terminal 1 Port Micro-Fit 3.0™ T/R

2110 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8536.69.80.00
Automotive	No
PPAP	No
Type	Power
Gender	HDR
Number of Contacts	18
Number of Terminals	18
Number of Ports	1
Termination Method	Solder
Terminal Pitch (mm)	3
Body Orientation	Right Angle
Current Rating-Max(A)	8.5/Contact
Voltage Rating-Max	600V
Insulation Resistance (MOhm)	1000
Maximum Contact Resistance (mOhm)	10
Operating Temperature-Min	-40
Operating Temperature-Max	125
Mating Cycle (Cycles)	30
Housing Color	Black
Packing Method	Tape and Reel
Length (mm)	31.15
Depth (mm)	15.4
Height (mm)	8.77
Tradename	Micro-Fit 3.0™
Terminal Form	Surface Mount
Contact Plating	Gold Over Nickel
