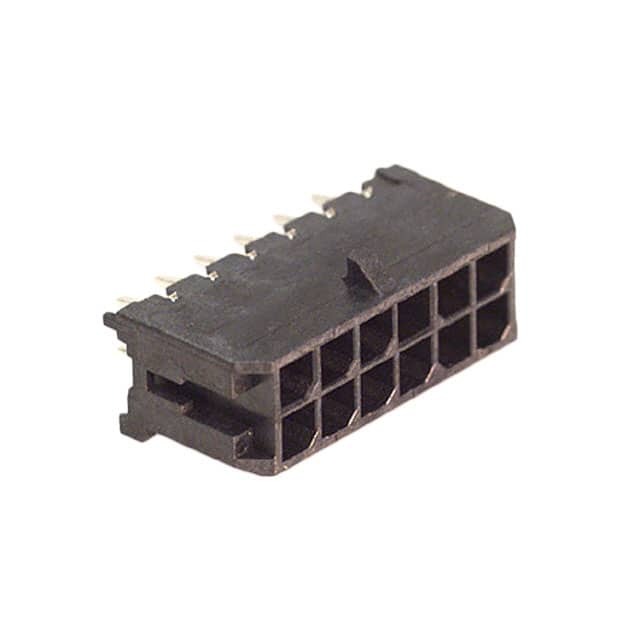

43045-1212

SKU: 107542

Manufacturer: Molex

Conn Wire to Board HDR 12 POS 3mm Solder ST Top Entry Thru-Hole Micro-Fit 3.0™ Tray

700 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8536.69.40.40
Automotive	No
PPAP	No
Type	Wire to Board
Gender	HDR
Number of Contacts	12
Number of Rows	2
Termination Method	Solder
Terminal Pitch (mm)	3
Body Orientation	Straight
Polarization Type	Center Key
Row Spacing (mm)	3
Current Rating-Max(A)	8.5/Contact
Voltage Rating-Max	600V
Insulation Resistance (MOhm)	1000
Maximum Contact Resistance (mOhm)	10
Operating Temperature-Min	-40
Operating Temperature-Max	105
Mating Cycle (Cycles)	30
Packing Method	Tray
Product Weight (g)	1.698
Length (mm)	22.15
Depth (mm)	8.77
Height (mm)	9.91
Tradename	Micro-Fit 3.0™
Contact Plating Thickness	2.5um
Tail Length (mm)	3.18
