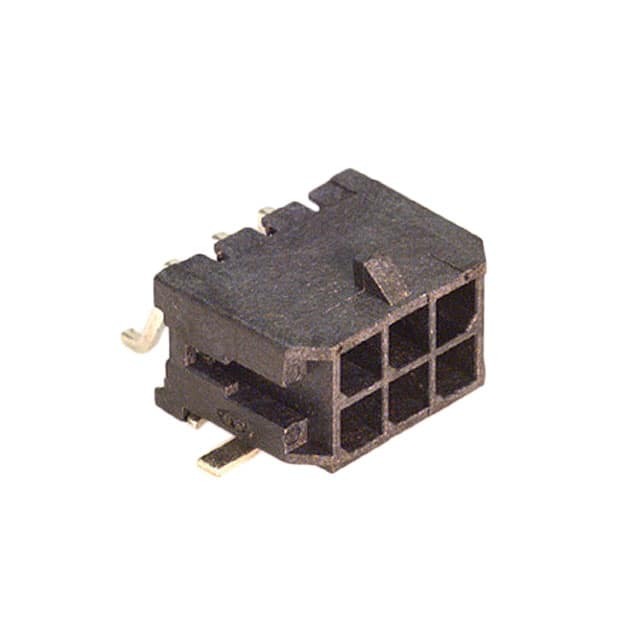

43045-0609

SKU: 15703

Manufacturer: Molex

Conn Wire to Board HDR 6 POS 3mm Solder RA Side Entry SMD Micro-Fit 3.0™ T/R

2770 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8536.69.80.00
Automotive	No
PPAP	No
Type	Wire to Board
Gender	HDR
Number of Contacts	6
Number of Rows	2
Termination Method	Solder
Terminal Pitch (mm)	3
Body Orientation	Right Angle
Polarization Type	Center Key
Row Spacing (mm)	3
Current Rating-Max(A)	8.5/Contact
Voltage Rating-Max	600V
Insulation Resistance (MOhm)	1000
Maximum Contact Resistance (mOhm)	10
Operating Temperature-Min	-40
Operating Temperature-Max	105
Mating Cycle (Cycles)	30
Packing Method	Tape and Reel
Product Weight (g)	1.124
Length (mm)	16.65
Depth (mm)	15.4
Height (mm)	8.77
Tradename	Micro-Fit 3.0™
Contact Plating Thickness	(2.54/1.27)um
