42410-8312

SKU: 15699

Manufacturer: Molex

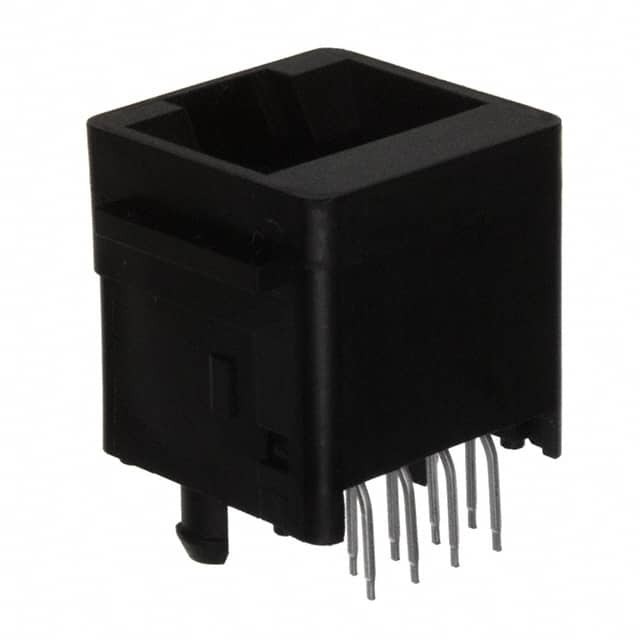

Conn RJ-45 RCP 8 POS 2.54mm Solder ST Thru-Hole 8 Terminal 1 Port Cat 3 Tray

2570 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8536.69.40.40
Automotive	No
PPAP	No
Type	RJ-45
Gender	RCP
Number of Terminals	8
Number of Contacts	8
Number of Ports	1
Number of Loaded Positions	8
Category Number	Cat 3
Termination Method	Solder
Terminal Pitch (mm)	2.54
Body Orientation	Straight
Current Rating-Max(A)	1.5/Contact
Voltage Rating-Max	125V
Maximum Contact Resistance (mOhm)	20
Mating Cycle (Cycles)	500
Integrated Magnetics	No
Operating Temperature-Min	-40
Operating Temperature-Max	80
Packing Method	Tray
Product Style	Single
Product Weight (g)	2.726
Length (mm)	16
Depth (mm)	15.88
Height (mm)	16.38
