39301040

SKU: 72243

Manufacturer: Molex

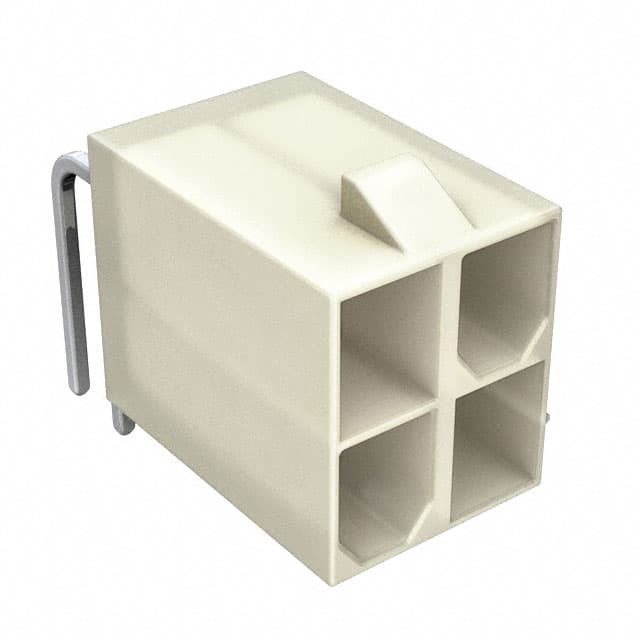

Conn Wire to Board HDR 4 POS 4.2mm Solder RA Side Entry Thru-Hole Mini-Fit Jr™ Bag

690 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8536.69.40.40
Automotive	No
PPAP	No
Type	Wire to Board
Gender	HDR
Number of Contacts	4
Number of Rows	2
Termination Method	Solder
Terminal Pitch (mm)	4.2
Body Orientation	Right Angle
Polarization Type	Center Key
Row Spacing (mm)	5.5
Current Rating-Max(A)	13/Contact
Voltage Rating-Max	600VDC
Insulation Resistance (MOhm)	1000
Maximum Contact Resistance (mOhm)	10
Operating Temperature-Min	-40
Operating Temperature-Max	105
Mating Cycle (Cycles)	30
Packing Method	Bag
Product Weight (g)	1.557
Length (mm)	9.6
Depth (mm)	19.93
Tradename	Mini-Fit Jr™
Contact Plating Thickness	2.5um
Tail Length (mm)	3.6
