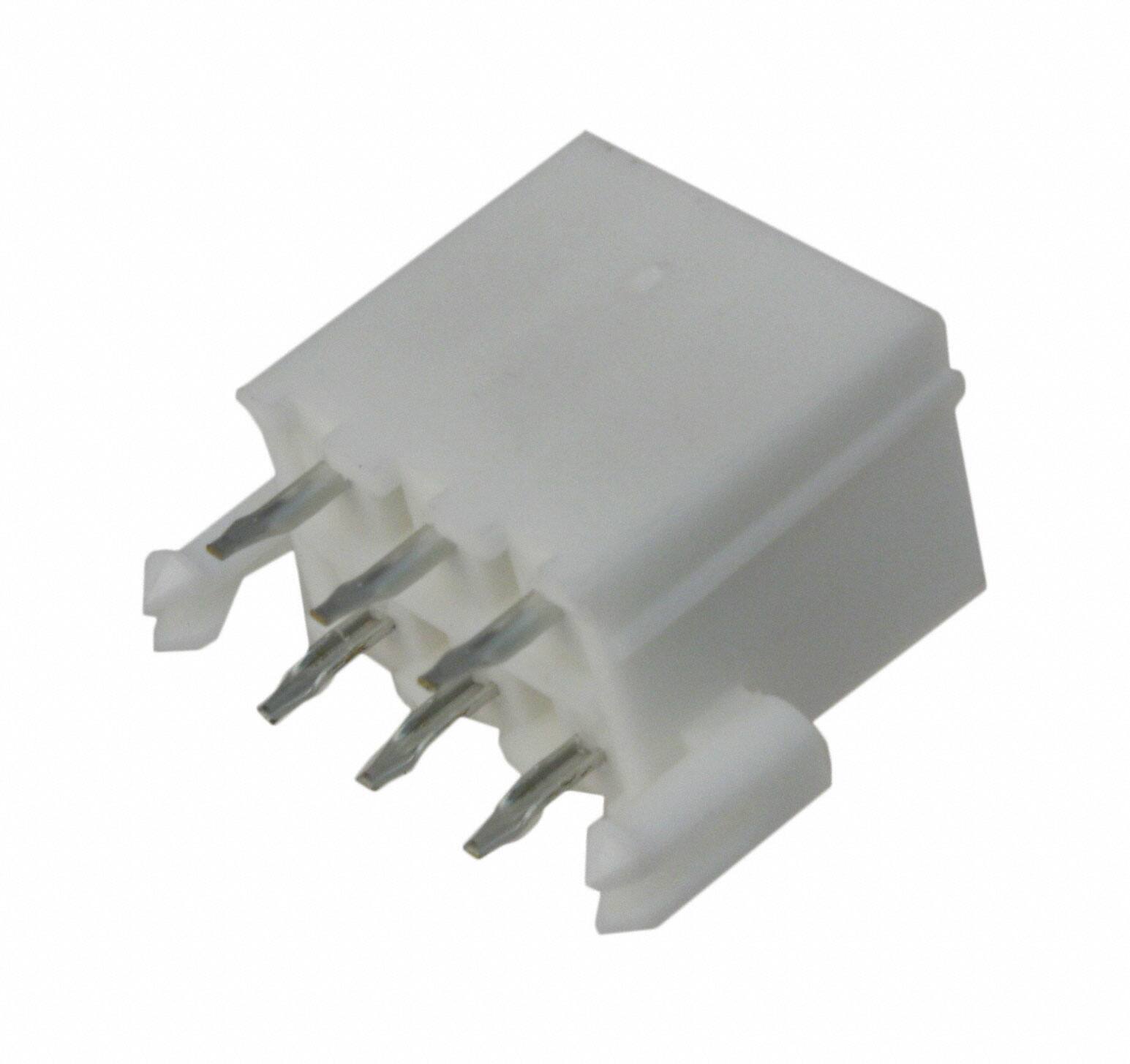

39-29-9069

SKU: 52757

Manufacturer: Molex

Conn Wire to Board HDR 6Power POS 4.2mm Solder ST Top Entry Thru-Hole Mini-Fit Jr. Tray

3210 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
Automotive	No
PPAP	No
Type	Wire to Board
Gender	HDR
Number of Contacts	6Power
Number of Rows	2
Termination Method	Solder
Terminal Pitch (mm)	4.2
Body Orientation	Straight
Polarization Type	Center Key
Row Spacing (mm)	4.2
Current Rating-Max(A)	9/Contact
Voltage Rating-Max	600VAC
Insulation Resistance (MOhm)	1000
Maximum Contact Resistance (mOhm)	10
Operating Temperature-Min	-40
Operating Temperature-Max	105
Mating Cycle (Cycles)	30
Packing Method	Tray
Product Weight (g)	1.412
Height (mm)	12.8
Tradename	Mini-Fit Jr.
Contact Plating Thickness	(0.76/1.27)um
Tail Length (mm)	3.5
