    Prev39-28-1043
    Next39-28-1083

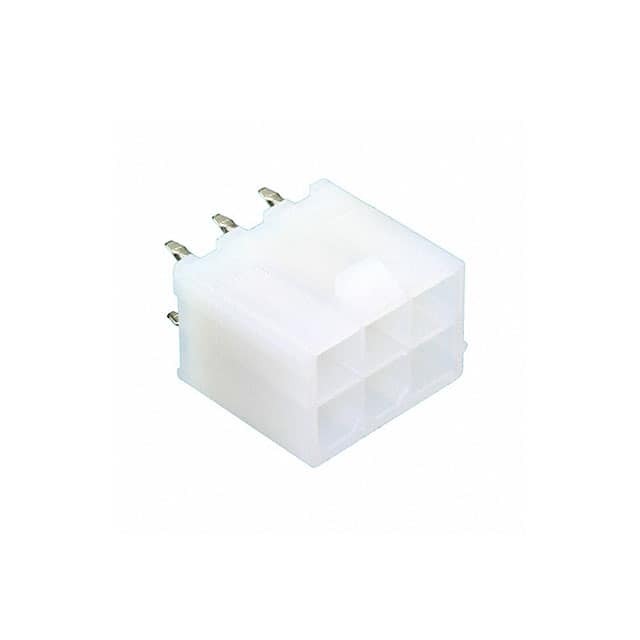

    39-28-1063

    SKU: 5177
    Manufacturer: Molex
    Conn Wire to Board HDR 6Power POS 4.2mm Solder ST Top Entry Thru-Hole Mini-Fit Jr™ Bag
    Request Free Samples
    1430 parts IN STOCK
    Shipped from :
    Netherlands
    Expected Ships :
    Rohs State : Need to verify

    QUANTITY

    Increments of 0 pcs
    Molex 39-28-1063 is available at WIN SOURCE. Please review product page below for detailed information, including 39-28-1063 price, datasheets, in-stock availability, technical difficulties. Quickly Enter the access of compare list to find replaceable electronic parts. Want to gain comprehensive data for 39-28-1063 to optimize the supply chain (include cross references, lifecycle, parametric, counterfeit risk, obsolescence management forecasts), please contact to our Tech-supports team.
    Products specifications
    EU RoHS Compliant
    ECCN (US) EAR99
    Part Status Active
    Automotive No
    PPAP No
    Type Wire to Board
    Gender HDR
    Number of Contacts 6Power
    Number of Rows 2
    Termination Method Solder
    Terminal Pitch (mm) 4.2
    Body Orientation Straight
    Polarization Type Center Key
    Row Spacing (mm) 4.2
    Current Rating-Max(A) 9/Contact
    Voltage Rating-Max 600V
    Insulation Resistance (MOhm) 1000
    Maximum Contact Resistance (mOhm) 10
    Operating Temperature-Min -40
    Operating Temperature-Max 105
    Mating Cycle (Cycles) 30
    Packing Method Bag
    Product Weight (g) 1.41
    Length (mm) 14.6
    Depth (mm) 11
    Height (mm) 12.8
    Tradename Mini-Fit Jr™
    Contact Plating Thickness (0.889/0.5)um
    Tail Length (mm) 3.5
    Molex 39-28-1063 is available at WIN SOURCE. Please review product page below for detailed information, including 39-28-1063 price, datasheets, in-stock availability, technical difficulties. Quickly Enter the access of compare list to find replaceable electronic parts. Want to gain comprehensive data for 39-28-1063 to optimize the supply chain (include cross references, lifecycle, parametric, counterfeit risk, obsolescence management forecasts), please contact to our Tech-supports team.
    • 39-28-1063 Price
    • 39-2 Series
    • 39-28-1063 Datasheet
    • 39-28-1063 Application
    • 39-28-1063 Pdf
    • 39-28-1063 Pinout
    • 39-28-1063 Image
    • 39-28-1063 Picture
    • 39-28-1063 In Stock
    • 39-28-1063 Distributor
    • 39-28-1063 Connector Headers and PCB Receptacles
    • 39-28-1063 Molex
    Products specifications
    EU RoHS Compliant
    ECCN (US) EAR99
    Part Status Active
    Automotive No
    PPAP No
    Type Wire to Board
    Gender HDR
    Number of Contacts 6Power
    Number of Rows 2
    Termination Method Solder
    Terminal Pitch (mm) 4.2
    Body Orientation Straight
    Polarization Type Center Key
    Row Spacing (mm) 4.2
    Current Rating-Max(A) 9/Contact
    Voltage Rating-Max 600V
    Insulation Resistance (MOhm) 1000
    Maximum Contact Resistance (mOhm) 10
    Operating Temperature-Min -40
    Operating Temperature-Max 105
    Mating Cycle (Cycles) 30
    Packing Method Bag
    Product Weight (g) 1.41
    Length (mm) 14.6
    Depth (mm) 11
    Height (mm) 12.8
    Tradename Mini-Fit Jr™
    Contact Plating Thickness (0.889/0.5)um
    Tail Length (mm) 3.5
