39-01-2080 Molex

39-01-2080

SKU: 142980

Manufacturer: Molex

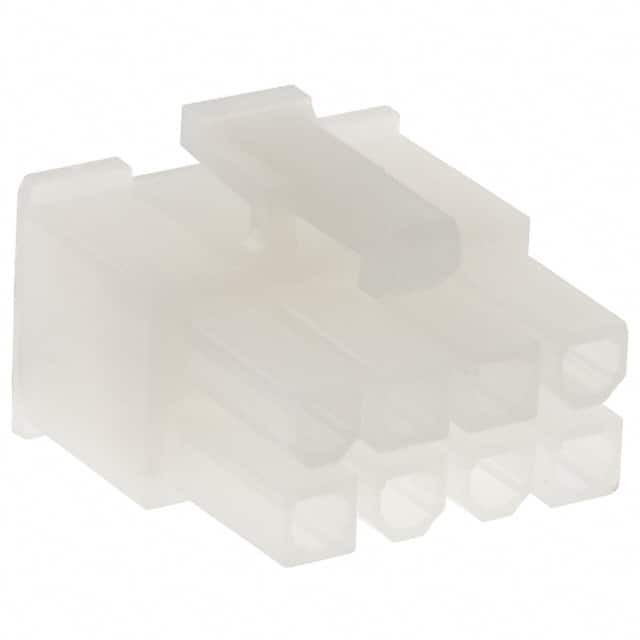

Conn Housing RCP 8 POS 4.2mm Crimp ST Cable Mount Natural Mini-Fit Jr™ Bag

Request Free Samples

520 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

QUANTITY

Increments of 0 pcs

Specifications
Contact Us

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8538.90.81.80
Automotive	No
PPAP	No
Type	Housing
Gender	RCP
Number of Contacts	8
Number of Rows	2
Termination Method	Crimp
Terminal Pitch (mm)	4.2
Body Orientation	Straight
Current Rating-Max(A)	13/Contact
Voltage Rating-Max	600VDC
Insulation Resistance (MOhm)	1000
Operating Temperature-Min	-40
Operating Temperature-Max	105
Packing Method	Bag
Product Weight (g)	1.8
Length (mm)	18
Height (mm)	19.6
Tradename	Mini-Fit Jr™
