348260241

SKU: 10015

Manufacturer: Molex

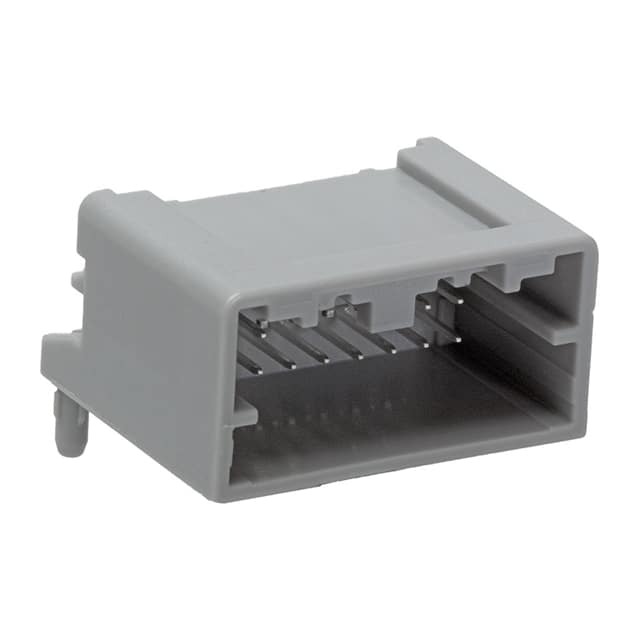

Conn Shrouded Header (4 Sides) HDR 24 POS 2mm Solder RA Side Entry Thru-Hole Mini 50™ Automotive Tray

2410 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
Automotive	No
PPAP	No
Type	Shrouded Header (4 Sides)
Gender	HDR
Number of Contacts	24
Number of Rows	2
Termination Method	Solder
Terminal Pitch (mm)	2
Body Orientation	Right Angle
Row Spacing (mm)	2.2
Current Rating-Max(A)	4/Contact
Voltage Rating-Max	14V
Insulation Resistance (MOhm)	100
Maximum Contact Resistance (mOhm)	20
Operating Temperature-Min	-40
Operating Temperature-Max	105
Mating Cycle (Cycles)	10
Packing Method	Tray
Product Weight (g)	3.792
Length (mm)	34.63
Depth (mm)	19.5
Height (mm)	12.17
Tradename	Mini 50™
