26-60-4060

SKU: 9774

Manufacturer: Molex

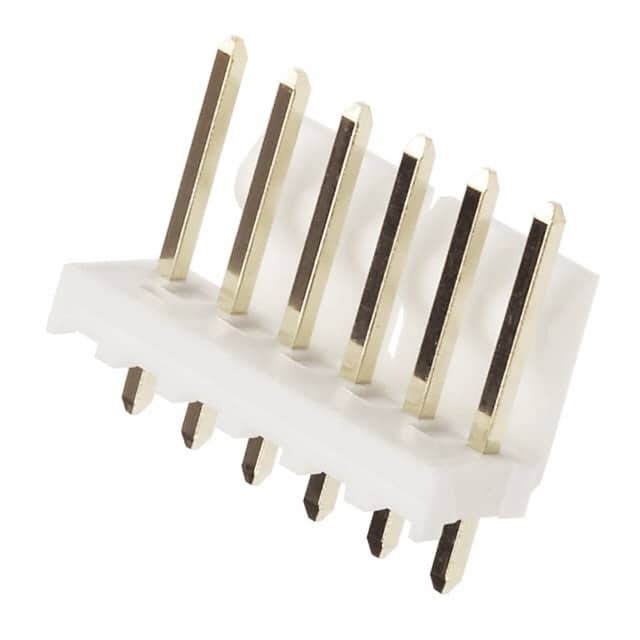

Conn Wire to Board HDR 6 POS 3.96mm Solder ST Top Entry Thru-Hole KK® Bag

2150 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
Automotive	No
PPAP	No
Type	Wire to Board
Gender	HDR
Number of Contacts	6
Number of Rows	1
Termination Method	Solder
Terminal Pitch (mm)	3.96
Body Orientation	Straight
Polarization Type	Center Slot
Current Rating-Max(A)	7/Contact
Voltage Rating-Max	250V
Insulation Resistance (MOhm)	1000
Maximum Contact Resistance (mOhm)	10
Operating Temperature-Min	-40
Operating Temperature-Max	80
Mating Cycle (Cycles)	25
Packing Method	Bag
Product Weight (g)	2.244
Length (mm)	23.62
Depth (mm)	10.01
Height (mm)	14.73
Tradename	KK®
Contact Plating Thickness	(1.52/1.27)um
Tail Length (mm)	3.56
