22035045

SKU: 65175

Manufacturer: Molex

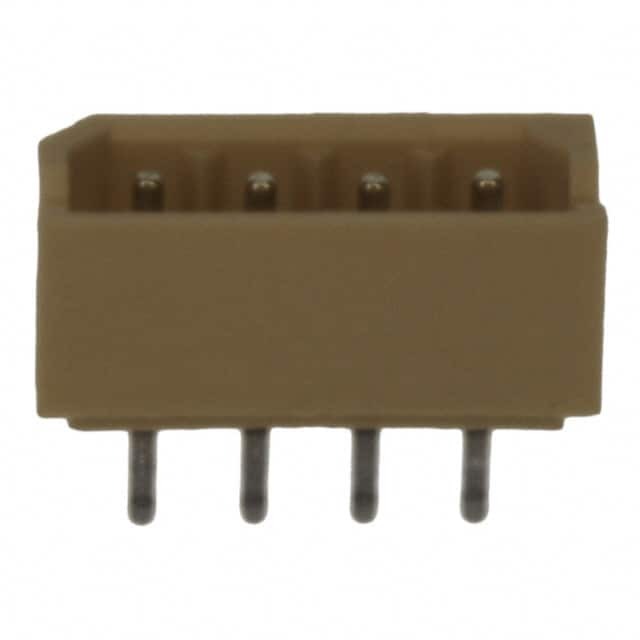

Conn Shrouded Header (4 Sides) HDR 4 POS 2.5mm Solder ST Top Entry Thru-Hole SPOX™ Bag

2590 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
Automotive	No
PPAP	No
Type	Shrouded Header (4 Sides)
Gender	HDR
Number of Contacts	4
Number of Rows	1
Termination Method	Solder
Terminal Pitch (mm)	2.5
Body Orientation	Straight
Polarization Type	Dual Slot
Current Rating-Max(A)	3/Contact
Voltage Rating-Max	250V
Insulation Resistance (MOhm)	1000
Maximum Contact Resistance (mOhm)	20
Operating Temperature-Min	-40
Operating Temperature-Max	105
Mating Cycle (Cycles)	30
Packing Method	Bag
Product Weight (g)	0.373
Length (mm)	12.4
Depth (mm)	4.9
Height (mm)	5.9
Tradename	SPOX™
Tail Length (mm)	3.5
