22012047 Molex

22012047

SKU: 79203

Manufacturer: Molex

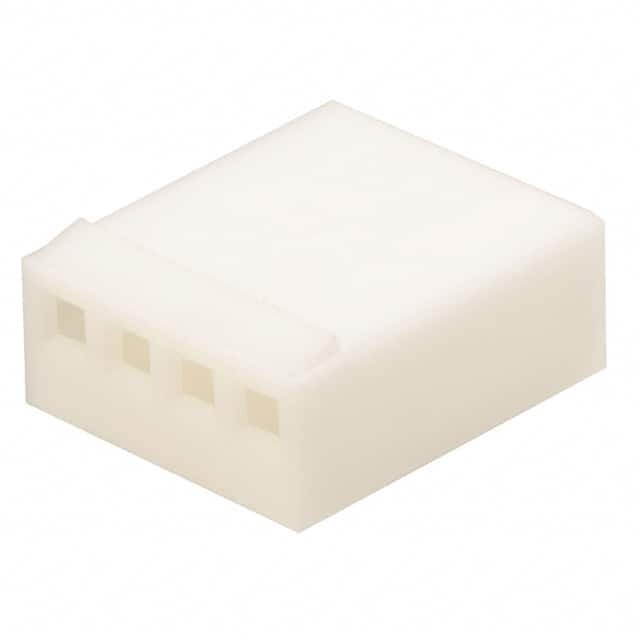

Conn Housing RCP 4 POS 2.54mm Crimp ST Cable Mount White KK® Bag

Request Free Samples

830 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

QUANTITY

Increments of 0 pcs

Specifications
Contact Us

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8538.90.81.80
Automotive	No
PPAP	No
Type	Housing
Gender	RCP
Number of Contacts	4
Number of Rows	1
Termination Method	Crimp
Terminal Pitch (mm)	2.54
Body Orientation	Straight
Current Rating-Max(A)	4/Contact
Voltage Rating-Max	600VDC
Insulation Resistance (MOhm)	1000
Operating Temperature-Min	-40
Operating Temperature-Max	105
Mating Cycle (Cycles)	25
Packing Method	Bag
Product Weight (g)	0.493
Length (mm)	10.72
Depth (mm)	6.98
Height (mm)	12.7
Tradename	KK®
Keyed	No
