15-24-6240

SKU: 15622

Manufacturer: Molex

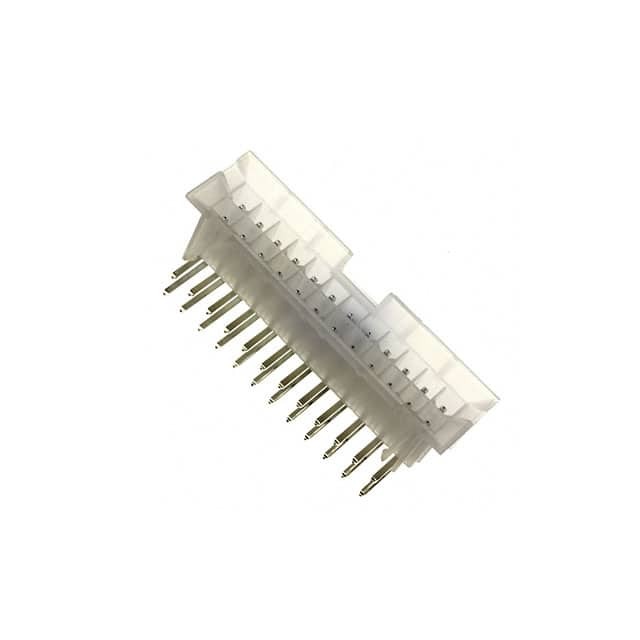

Conn Wire to Board HDR 24 POS 4.2mm Solder RA Side Entry Thru-Hole Mini-Fit® BMI Tray

1440 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8536.69.80.00
Automotive	No
PPAP	No
Type	Wire to Board
Gender	HDR
Number of Contacts	24
Number of Rows	2
Termination Method	Solder
Terminal Pitch (mm)	4.2
Body Orientation	Right Angle
Polarization Type	Center Key
Row Spacing (mm)	4.2
Current Rating-Max(A)	13/Contact
Voltage Rating-Max	600V
Insulation Resistance (MOhm)	1000
Maximum Contact Resistance (mOhm)	10
Operating Temperature-Min	-40
Operating Temperature-Max	105
Mating Cycle (Cycles)	30
Packing Method	Tray
Product Weight (g)	9.284
Length (mm)	57
Depth (mm)	20.7
Height (mm)	15
Tradename	Mini-Fit® BMI
Contact Plating Thickness	2.5um
Tail Length (mm)	3.3
