14562032

SKU: 43947

Manufacturer: Molex

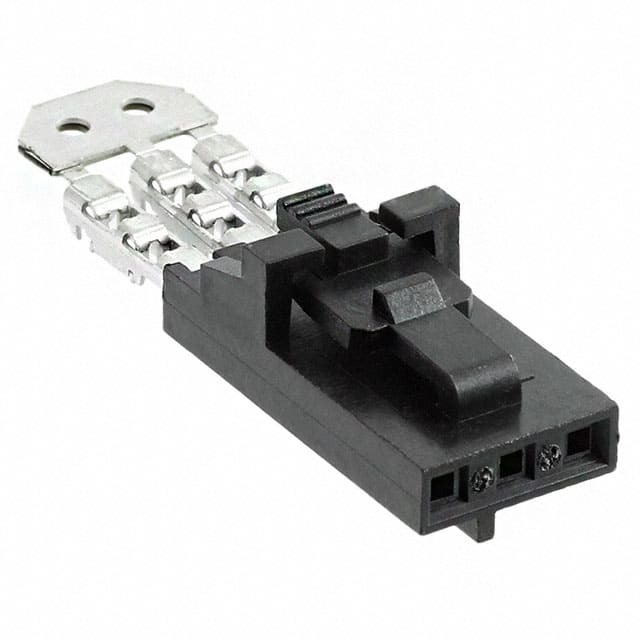

Conn IDC Connector F 3 POS 2.54mm IDT ST Top Entry Cable Mount SL™ Tube

3200 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
Automotive	No
PPAP	No
Type	IDC Connector
Gender	F
Number of Contacts	3
Number of Rows	1
Termination Method	IDT
Terminal Pitch (mm)	2.54
Body Orientation	Straight
Polarization Type	Center Key
Current Rating-Max(A)	3/Contact
Voltage Rating-Max	250V
Maximum Contact Resistance (mOhm)	15
Operating Temperature-Min	-40
Operating Temperature-Max	105
Mating Cycle (Cycles)	50
Packing Method	Tube
Product Weight (g)	0.6
Length (mm)	7.59
Depth (mm)	15.24
Height (mm)	6.58
Tradename	SL™
