104238-0210 Molex

104238-0210

SKU: 157180

Manufacturer: Molex

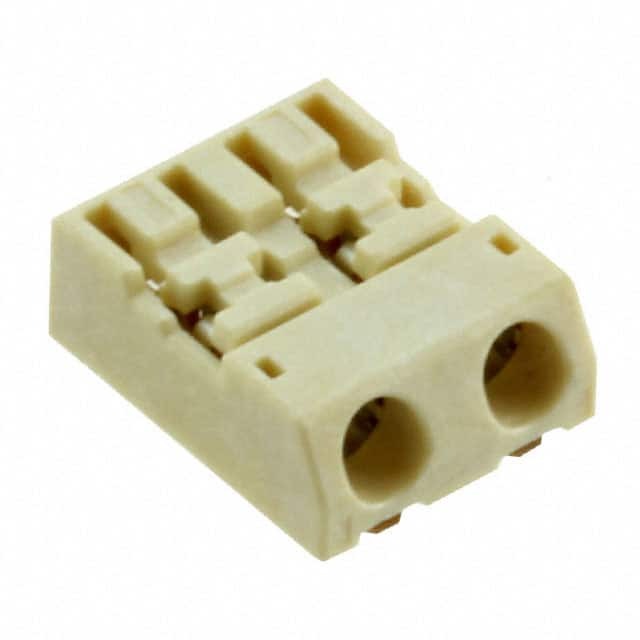

Conn Wire to Board RCP 2 POS 3mm Solder RA SMD Mini Lite-Trap™ T/R

Download sample

Request Free Samples

2130 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

QUANTITY

Increments of 0 pcs

Specifications
Contact Us

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Obsolete
HTS	8536.69.40.40
Automotive	No
PPAP	No
Type	Wire to Board
Gender	RCP
Number of Contacts	2
Number of Rows	1
Termination Method	Solder
Terminal Pitch (mm)	3
Body Orientation	Right Angle
Current Rating-Max(A)	3/Contact
Voltage Rating-Max	160VDC
Insulation Resistance (MOhm)	1000
Operating Temperature-Min	-40
Operating Temperature-Max	130
Mating Cycle (Cycles)	25
Packing Method	Tape and Reel
Product Weight (g)	0.175
Length (mm)	5.9
Depth (mm)	7.9
Height (mm)	2.65
Tradename	Mini Lite-Trap™
