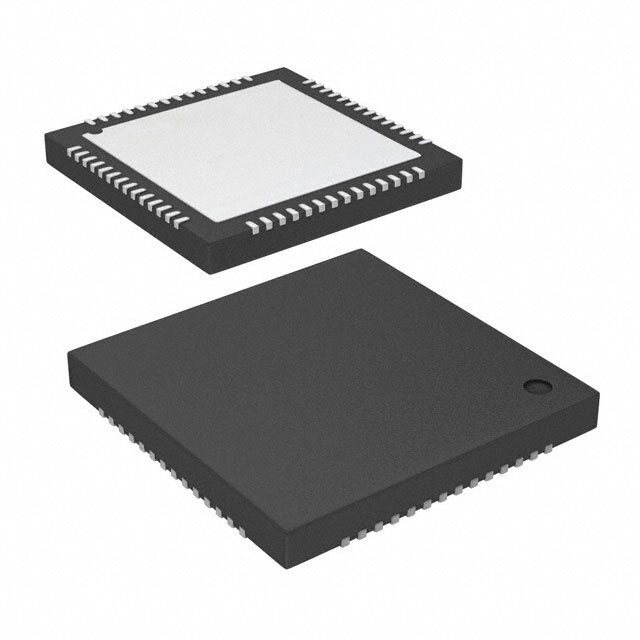

ZL30261LDG1

SKU: 86264

Manufacturer: Microsemi

Clock Generator 9.72MHz to 156.25MHz-IN 1045MHz-OUT 56-Pin QFN EP Tray

2760 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
Automotive	No
PPAP	No
Number of Outputs per Chip	6
Clock Input Frequency (MHz)	9.72 to 156.25
Maximum Output Frequency (MHz)	1045
Typical Duty Cycle (%)	50
Input Logic Level	CMOS
Output Logic Level	CMOS
Operating Supply Voltage-Min (V)	2.375
Typical Operating Supply Voltage (V)	2.5
Operating Supply Voltage-Max (V)	3.465
Maximum Power Dissipation (mW)	670(Typ)
Operating Temperature-Min	-40
Operating Temperature-Max	85
Packing Method	Tray
Original Package	QFN EP
Pin Count	56
Standard Package Method	QFN
Terminal Form	Surface Mount
Package Height	0.95(Max)
Package Length	8
Package Width	8
PCB changed	56
