USB50415CE3/TR7

SKU: 79007

Manufacturer: Microsemi

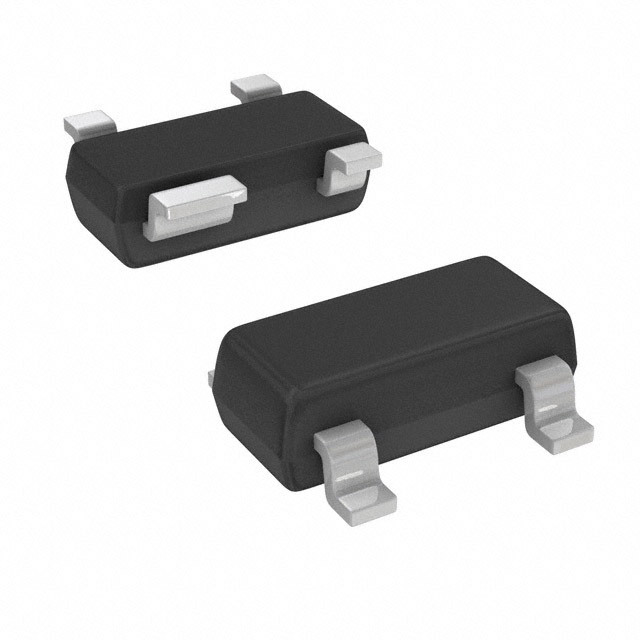

ESD Suppressor Diode TVS Bi-Dir 15V 4-Pin SOT-143 T/R

1600 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Unconfirmed
HTS	8541.10.00.80
Automotive	No
PPAP	No
Type	TVS
Configuration	Single
Direction Type	Bi-Directional
Number of Elements per pcs	1
Maximum Working Voltage (V)	15
Minimum Breakdown Voltage (V)	16.7
Maximum Clamping Voltage (V)	32
Maximum Peak Pulse Current (A)	5
Maximum Leakage Current (uA)	1
Test Current (mA)	1
Peak Pulse Power Dissipation (W)	500
Capacitance Value (pF)	3
Operating Temperature-Min	-55
Operating Temperature-Max	150
Packing Method	Tape and Reel
Original Package	SOT-143
Pin Count	4
Standard Package Method	SOT
Terminal Form	Surface Mount
Package Height	0.94(Max)
Package Length	2.87(Max)
Package Width	1.4(Max)
PCB changed	4
