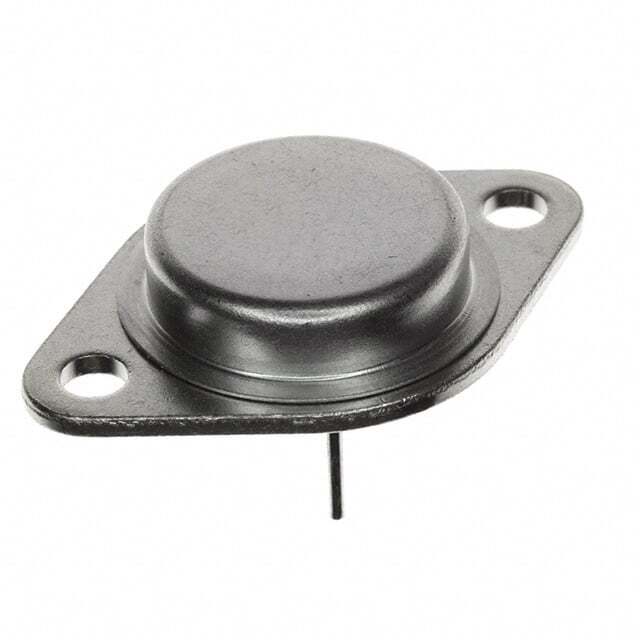

SG117AK Microsemi

SG117AK

SKU: 38060

Manufacturer: Microsemi

Standard Regulator Pos 1.25V 1.5A 3-Pin(2+Tab) TO-3

Download sample

Request Free Samples

1040 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

QUANTITY

Increments of 0 pcs

Specifications
Contact Us

Products specifications

EU RoHS	Not Compliant
ECCN (US)	EAR99
Part Status	Active
Automotive	No
PPAP	No
Type	Standard
Number of Outputs	1
Polarity	Positive
Accuracy (%)	±1
Output Type	Adjustable
Output Voltage (V)	1.25(Min)
Maximum Output Current (A)	1.5(Min)
Maximum Input Voltage (V)	37
Reference Voltage (V)	1.262
Line Regulation	0.01%/V
Load Regulation	0.3%
Junction to Ambient	35°C/W
Junction to Case	3°C/W
Operating Temperature-Min	-55
Operating Temperature-Max	125
Supplier Temperature Grade	Military
Original Package	TO-3
Pin Count	3
Standard Package Method	TO-204-AA
Terminal Form	Through Hole
Package Height	7.92
Package Length	39.29
Package Width	26.42
PCB changed	2
Tab	Tab
