MSD75-16

SKU: 34860

Manufacturer: Microsemi

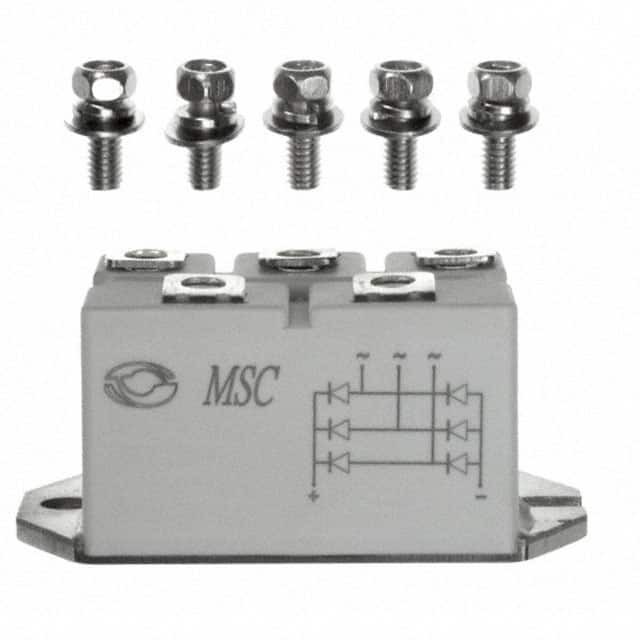

Diode Rectifier Bridge Single 1.6KV 75A 5-Pin Case M2

2760 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Obsolete
Automotive	No
PPAP	No
Bridge Type	Three Phase
Configuration	Single
Peak Reverse Repetitive Voltage (V)	1600
Peak Average Forward Current (A)	75
Peak Non-Repetitive Forward Surge Current (A)	750
Peak Forward Voltage (V)	1.6@150A
Peak Reverse Current (uA)	300
Operating Temperature-Min	-40
Operating Temperature-Max	150
Original Package	Case M2
Pin Count	5
Terminal Form	Screw
Package Height	30
Package Length	72
Package Width	42
