LX8384-00CDD

SKU: 34324

Manufacturer: Microsemi

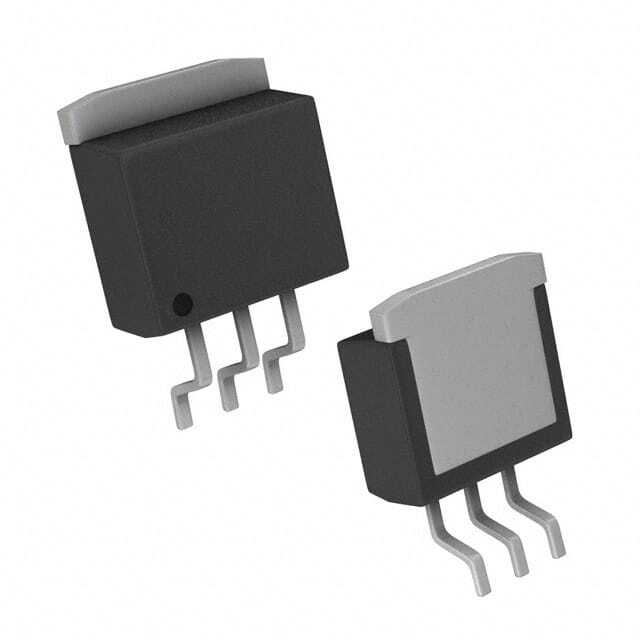

LDO Regulator Pos 6A 4-Pin(3+Tab) TO-263

1690 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Obsolete
HTS	8542.39.00.01
Automotive	No
PPAP	No
Type	LDO
Number of Outputs	1
Polarity	Positive
Accuracy (%)	±2
Output Type	Adjustable
Maximum Output Current (A)	6(Typ)
Maximum Input Voltage (V)	10
Maximum Dropout Voltage @ Current (V)	1.5@6A
Reference Voltage (V)	1.262
Line Regulation	0.3%
Load Regulation	0.5%
Junction to Ambient	60°C/W
Special Features	Current Limit
Operating Temperature-Min	0
Operating Temperature-Max	125
Supplier Temperature Grade	Commercial
Original Package	TO-263
Pin Count	4
Standard Package Method	TO-263
Terminal Form	Surface Mount
Package Height	4.59(Max)
Package Length	10.67(Max)
Package Width	9.17(Max)
PCB changed	3
Tab	Tab
