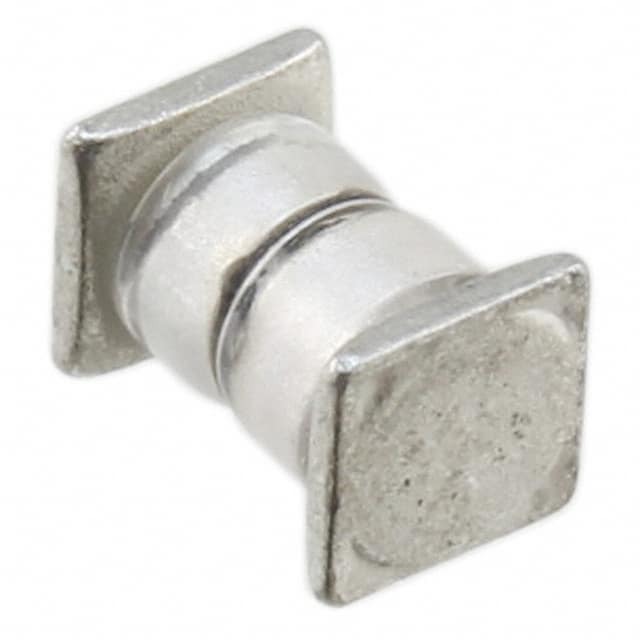

JANTX1N6464US

SKU: 51849

Manufacturer: Microsemi

TVS Diode Single Uni-Dir 15V 500W 2-Pin E-MELF Bag

1770 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Not Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8541.10.00.50
SVHC	Yes
SVHC Exceeds Threshold	Yes
Automotive	No
PPAP	No
Configuration	Single
Direction Type	Uni-Directional
Number of Elements per pcs	1
Minimum Breakdown Voltage (V)	16.4
Maximum Clamping Voltage (V)	26.5
Maximum Reverse Stand-Off Voltage (V)	15
Maximum Peak Pulse Current (A)	107
Maximum Reverse Leakage Current (uA)	500
Test Current (mA)	5
Peak Pulse Power Dissipation (W)	500
Operating Temperature-Min	-55
Operating Temperature-Max	175
Supplier Temperature Grade	Military
Packing Method	Bag
Original Package	E-MELF
Pin Count	2
Standard Package Method	MELF
Terminal Form	Surface Mount
Package Height	3.76(Max)
Package Length	5.72(Max)
Package Width	3.76(Max)
