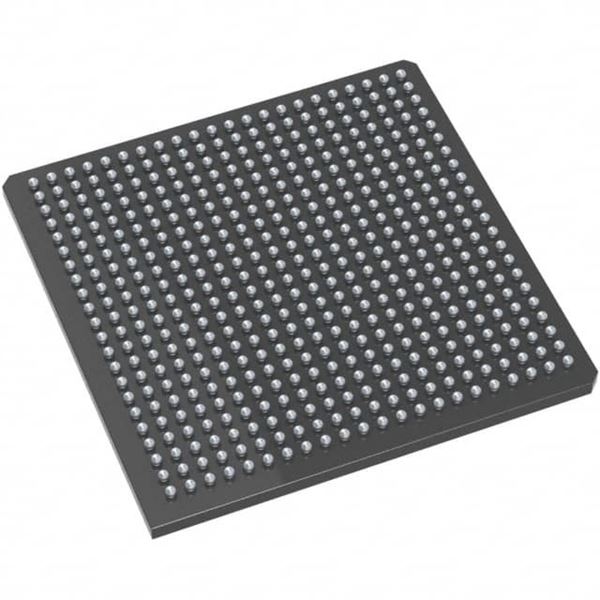

AX250-FG484

SKU: 44322

Manufacturer: Microsemi

FPGA Axcelerator Family 154K Gates 2816 Cells 649MHz 0.15um Technology 1.5V 484-Pin FBGA Tray

2870 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Not Compliant
ECCN (US)	3A001.a.7.a.
Part Status	Active
Automotive	No
PPAP	No
Family Name	Axcelerator
Process Technology	0.15um
User I/Os	248
Number of I/O Banks	8
Number of Inter Dielectric Layers	7
Number of Registers	2816
Operating Supply Voltage (V)	1.5
Logic Elements	2816
Device System Gates	250000
Program Memory Type	OTP
Embedded Memory (Kbit)	54
Total Number of Block RAM	12
Device Logic Gates	154000
Device Logic Units	2816
Number of Global Clocks	8
Device Number of DLLs/PLLs	8
Programmability	Yes
Reprogrammability Support	No
Copy Protection	No
Opr. Frequency (MHz)	649
In-System Programmability	No
Speed Grade	STD
Maximum Propagation Delay Time (ns)	0.99
Maximum I/O Performance	700Mbps
Operating Supply Voltage-Min (V)	1.425
Operating Supply Voltage-Max (V)	1.575
I/O Voltage (V)	1.5
Operating Temperature-Min	0
Operating Temperature-Max	70
Supplier Temperature Grade	Commercial
Packing Method	Tray
Tradename	Axcelerator
Original Package	FBGA
Pin Count	484
Standard Package Method	BGA
Terminal Form	Surface Mount
Package Height	1.73
Package Length	23
Package Width	23
PCB changed	484
