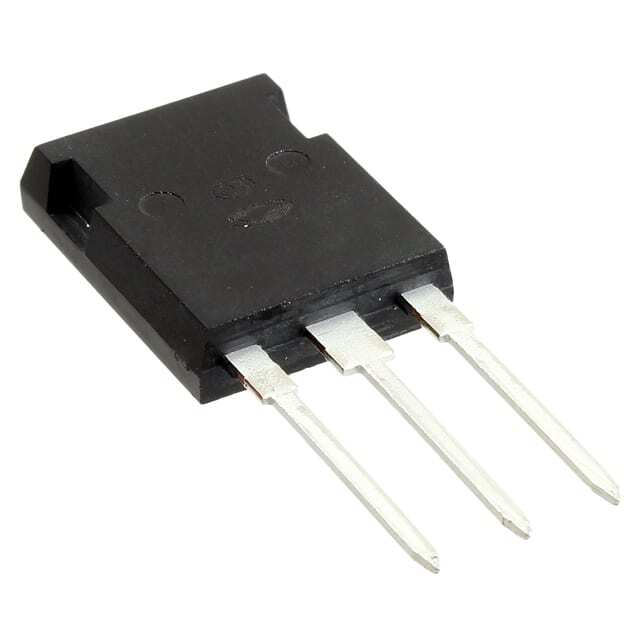

APT5017BVFR

SKU: 44270

Manufacturer: Microsemi

Trans MOSFET N-CH 500V 30A 3-Pin(3+Tab) TO-247

780 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Not Compliant
ECCN (US)	EAR99
Part Status	Obsolete
HTS	8541.29.00.95
Automotive	No
PPAP	No
Product Category	Power MOSFET
Process Technology	Power MOS V
Configuration	Single
Channel Mode	Enhancement
Channel Type	N
Number of Elements per pcs	1
Maximum Drain Source Voltage (V)	500
Maximum Gate Source Voltage (V)	±30
Maximum Continuous Drain Current (A)	30
Maximum Drain Source Resistance (mOhm)	170@10V
Typical Gate Charge @ Vgs (nC)	200@10V
Typical Gate Charge @ 10V (nC)	200
Typical Input Capacitance @ Vds (pF)	4400@25V
Maximum Power Dissipation (mW)	370000
Typical Fall Time (ns)	11
Typical Rise Time (ns)	14
Typical Turn-Off Delay Time (ns)	55
Typical Turn-On Delay Time (ns)	12
Operating Temperature-Min	-55
Operating Temperature-Max	150
Original Package	TO-247
Pin Count	3
Standard Package Method	TO-247
Terminal Form	Through Hole
Package Height	21.46(Max)
Package Length	16.26(Max)
Package Width	5.31(Max)
PCB changed	3
Tab	Tab
