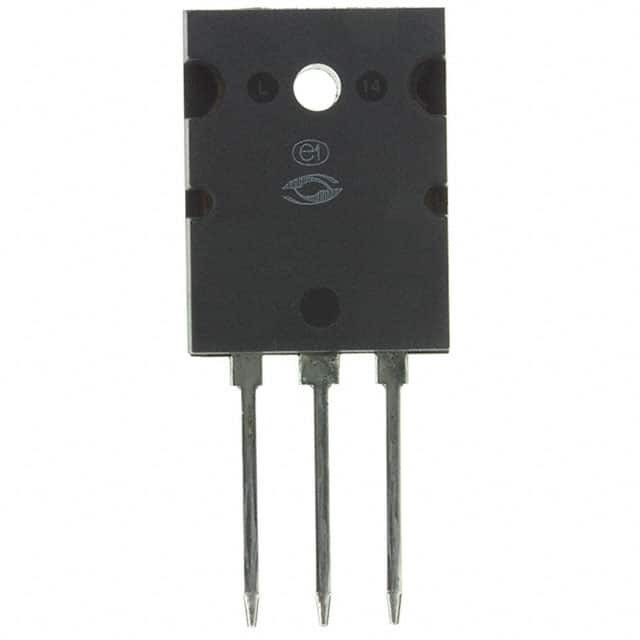

    APT5010LLLG

    SKU: 17890
    Manufacturer: Microsemi
    Trans MOSFET N-CH 500V 46A 3-Pin(3+Tab) T-MAX Tube
    3470 parts IN STOCK
    Shipped from :
    Netherlands
    Expected Ships :
    Rohs State : Need to verify

    QUANTITY

    Increments of 0 pcs
    Products specifications
    EU RoHS Compliant
    ECCN (US) EAR99
    Part Status Active
    Automotive No
    PPAP No
    Product Category Power MOSFET
    Configuration Single
    Channel Mode Enhancement
    Channel Type N
    Number of Elements per pcs 1
    Maximum Drain Source Voltage (V) 500
    Maximum Gate Source Voltage (V) ±30
    Maximum Gate Threshold Voltage (V) 5
    Maximum Continuous Drain Current (A) 46
    Maximum Gate Source Leakage Current (nA) 100
    Maximum IDSS (uA) 100
    Maximum Drain Source Resistance (mOhm) 100@10V
    Typical Gate Charge @ Vgs (nC) 95@10V
    Typical Gate Charge @ 10V (nC) 95
    Typical Input Capacitance @ Vds (pF) 4360@25V
    Maximum Power Dissipation (mW) 520000
    Typical Fall Time (ns) 3
    Typical Rise Time (ns) 15
    Typical Turn-Off Delay Time (ns) 25
    Typical Turn-On Delay Time (ns) 11
    Operating Temperature-Min -55
    Operating Temperature-Max 150
    Packing Method Tube
    Original Package T-MAX
    Pin Count 3
    Standard Package Method T-MAX
    Terminal Form Through Hole
    Package Height 21.46(Max)
    Package Length 16.26(Max)
    Package Width 5.31(Max)
    PCB changed 3
    Products specifications
    EU RoHS Compliant
    ECCN (US) EAR99
    Part Status Active
    Automotive No
    PPAP No
    Product Category Power MOSFET
    Configuration Single
    Channel Mode Enhancement
    Channel Type N
    Number of Elements per pcs 1
    Maximum Drain Source Voltage (V) 500
    Maximum Gate Source Voltage (V) ±30
    Maximum Gate Threshold Voltage (V) 5
    Maximum Continuous Drain Current (A) 46
    Maximum Gate Source Leakage Current (nA) 100
    Maximum IDSS (uA) 100
    Maximum Drain Source Resistance (mOhm) 100@10V
    Typical Gate Charge @ Vgs (nC) 95@10V
    Typical Gate Charge @ 10V (nC) 95
    Typical Input Capacitance @ Vds (pF) 4360@25V
    Maximum Power Dissipation (mW) 520000
    Typical Fall Time (ns) 3
    Typical Rise Time (ns) 15
    Typical Turn-Off Delay Time (ns) 25
    Typical Turn-On Delay Time (ns) 11
    Operating Temperature-Min -55
    Operating Temperature-Max 150
    Packing Method Tube
    Original Package T-MAX
    Pin Count 3
    Standard Package Method T-MAX
    Terminal Form Through Hole
    Package Height 21.46(Max)
    Package Length 16.26(Max)
    Package Width 5.31(Max)
    PCB changed 3
