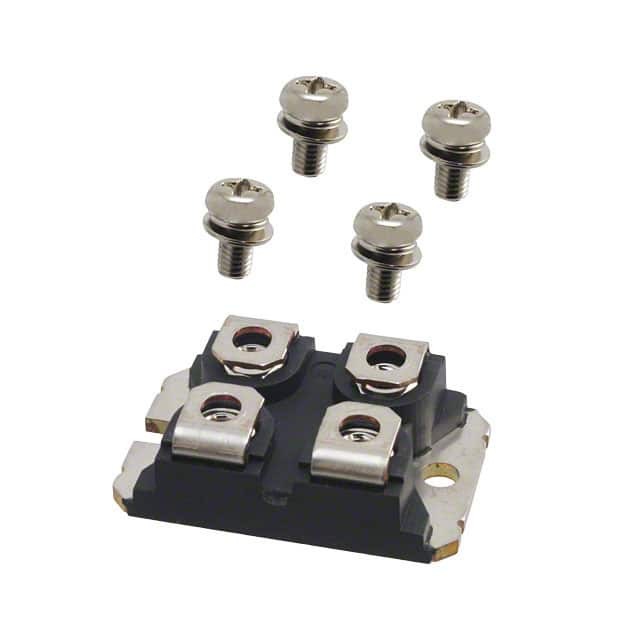

APT19F100J

SKU: 24863

Manufacturer: Microsemi

Trans MOSFET N-CH Si 1KV 20A 4-Pin SOT-227 Tube

2380 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8541.29.00.95
Automotive	No
PPAP	No
Product Category	Power MOSFET
Body Material	Si
Configuration	Single Dual Source
Channel Mode	Enhancement
Channel Type	N
Number of Elements per pcs	1
Maximum Drain Source Voltage (V)	1000
Maximum Gate Source Voltage (V)	±30
Maximum Continuous Drain Current (A)	20
Maximum Drain Source Resistance (mOhm)	440@10V
Typical Gate Charge @ Vgs (nC)	260@10V
Typical Gate Charge @ 10V (nC)	260
Typical Input Capacitance @ Vds (pF)	8500@25V
Maximum Power Dissipation (mW)	460000
Typical Fall Time (ns)	35
Typical Rise Time (ns)	37
Typical Turn-Off Delay Time (ns)	140
Typical Turn-On Delay Time (ns)	36
Operating Temperature-Min	-55
Operating Temperature-Max	150
Packing Method	Tube
Original Package	SOT-227
Pin Count	4
Standard Package Method	SOT
Terminal Form	Screw
Package Height	12.24(Max)
Package Length	38.2(Max)
Package Width	25.04(Max)
