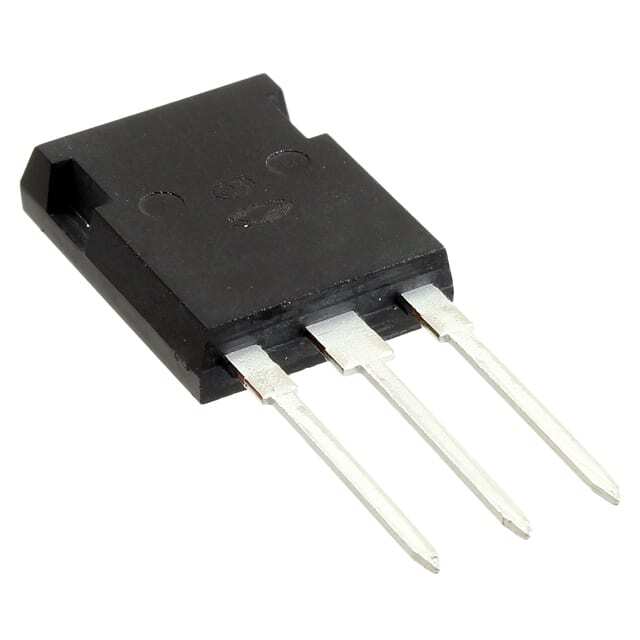

APT13GP120BDQ1G

SKU: 53392

Manufacturer: Microsemi

Trans IGBT Chip N-CH 1200V 41A 250000mW 3-Pin(3+Tab) TO-247 Tube

1220 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8541.29.00.95
Automotive	No
PPAP	No
Channel Type	N
Configuration	Single
Maximum Gate Emitter Voltage (V)	±20
Collector-Emitter Voltage-Max (V)	1200
Maximum Continuous Collector Current (A)	41
Maximum Gate Emitter Leakage Current (uA)	0.1
Maximum Power Dissipation (mW)	250000
Operating Temperature-Min	-55
Operating Temperature-Max	150
Packing Method	Tube
Original Package	TO-247
Pin Count	3
Standard Package Method	TO-247
Terminal Form	Through Hole
Package Height	21.46(Max)
Package Length	16.26(Max)
Package Width	5.31(Max)
PCB changed	3
Tab	Tab
