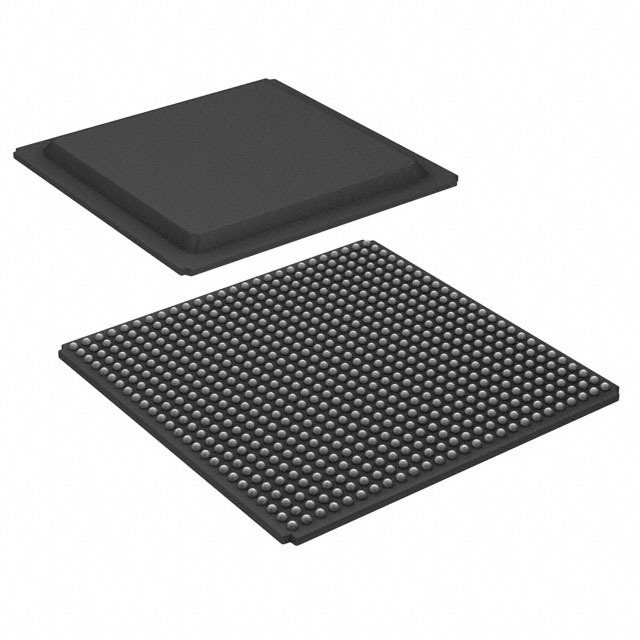

APA750-FG676

SKU: 95555

Manufacturer: Microsemi

FPGA ProASICPLUS Family 750K Gates 180MHz 0.22um Technology 2.5V 676-Pin FBGA Tray

1180 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Not Compliant
ECCN (US)	3A001a.7.a.
Part Status	Obsolete
Automotive	No
PPAP	No
Family Name	ProASICPLUS
Process Technology	0.22um
User I/Os	454
Number of Inter Dielectric Layers	4
Number of Registers	32768
Operating Supply Voltage (V)	2.5
Device System Gates	750000
Program Memory Type	FLASH
Embedded Memory (Kbit)	144
Total Number of Block RAM	64
Device Logic Gates	750000
Number of Global Clocks	4
Device Number of DLLs/PLLs	2
Maximum Supply Current (mA)	25
JTAG Support	Yes
PCIe	1
Programmability	Yes
Reprogrammability Support	Yes
Copy Protection	No
Opr. Frequency (MHz)	180
In-System Programmability	Yes
Speed Grade	STD
Operating Supply Voltage-Min (V)	2.3
Operating Supply Voltage-Max (V)	2.7
I/O Voltage (V)	2.5
Operating Temperature-Min	0
Operating Temperature-Max	70
Supplier Temperature Grade	Commercial
Packing Method	Tray
Tradename	ProASIC
Original Package	FBGA
Pin Count	676
Standard Package Method	BGA
Terminal Form	Surface Mount
Package Height	1.73
Package Length	27
Package Width	27
PCB changed	676
