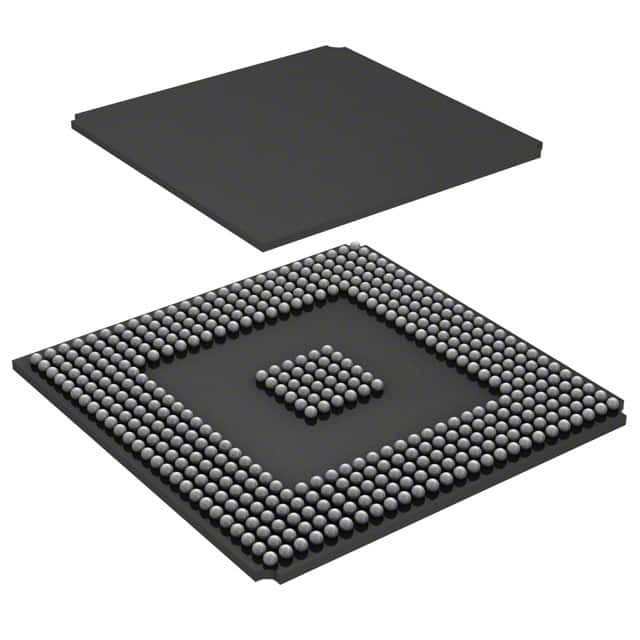

APA150-BG456

SKU: 145168

Manufacturer: Microsemi

FPGA ProASICPLUS Family 150K Gates 180MHz 0.22um Technology 2.5V 456-Pin BGA Tray

1260 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Not Compliant
ECCN (US)	3A991.d
Part Status	Obsolete
Automotive	No
PPAP	No
Family Name	ProASICPLUS
Process Technology	0.22um
User I/Os	242
Number of Inter Dielectric Layers	4
Number of Registers	6144
Operating Supply Voltage (V)	2.5
Device System Gates	150000
Program Memory Type	FLASH
Embedded Memory (Kbit)	36
Total Number of Block RAM	16
Device Logic Gates	150000
Number of Global Clocks	4
Device Number of DLLs/PLLs	2
PCIe	1
Programmability	Yes
Reprogrammability Support	Yes
Copy Protection	No
Opr. Frequency (MHz)	180
In-System Programmability	Yes
Speed Grade	STD
Operating Supply Voltage-Min (V)	2.3
Operating Supply Voltage-Max (V)	2.7
I/O Voltage (V)	3.3
Operating Temperature-Min	0
Operating Temperature-Max	70
Supplier Temperature Grade	Commercial
Packing Method	Tray
Tradename	ProASIC
Original Package	BGA
Pin Count	456
Standard Package Method	BGA
Terminal Form	Surface Mount
Package Height	1.73
Package Length	35
Package Width	35
PCB changed	456
