AGL250V5-CSG196

SKU: 145089

Manufacturer: Microsemi

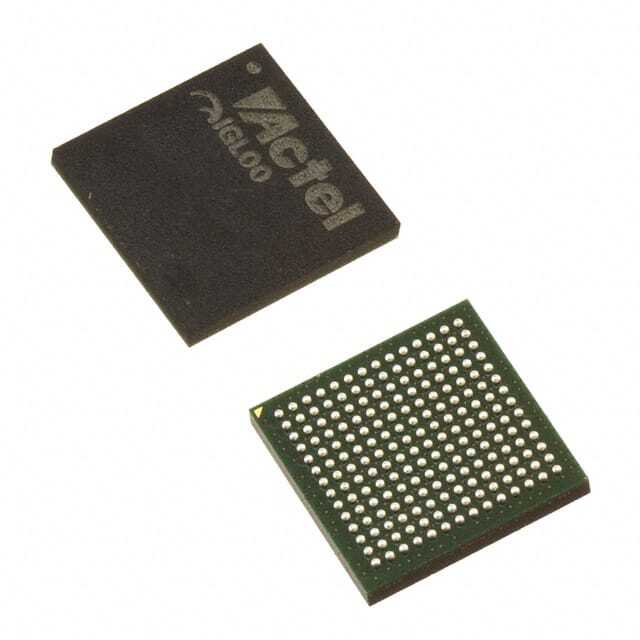

FPGA IGLOO Family 250K Gates 130nm Technology 1.5V 196-Pin FBGA Box

2960 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8542.39.00.01
Automotive	No
PPAP	No
Family Name	IGLOO
Process Technology	130nm
User I/Os	143
Number of I/O Banks	4
Number of Inter Dielectric Layers	7
Number of Registers	6144
Operating Supply Voltage (V)	1.5
Device System Gates	250000
Program Memory Type	FLASH
Embedded Memory (Kbit)	36
Total Number of Block RAM	8
Device Logic Gates	250000
Number of Global Clocks	18
Device Number of DLLs/PLLs	1
JTAG Support	Yes
Programmability	Yes
Reprogrammability Support	Yes
Copy Protection	No
In-System Programmability	Yes
Speed Grade	STD
Differential I/O Standards	M-LVDS
Single-Ended I/O Standards	LVCMOS
Maximum Differential I/O Pairs	35
Maximum I/O Performance	700Mbps
Operating Supply Voltage-Min (V)	1.425
Operating Supply Voltage-Max (V)	1.575
I/O Voltage (V)	3.3
Operating Temperature-Min	0
Operating Temperature-Max	70
Supplier Temperature Grade	Commercial
Packing Method	Box
Tradename	IGLOO
Original Package	FBGA
Pin Count	196
Standard Package Method	BGA
Terminal Form	Surface Mount
Package Height	1.2
Package Length	8
Package Width	8
PCB changed	196
