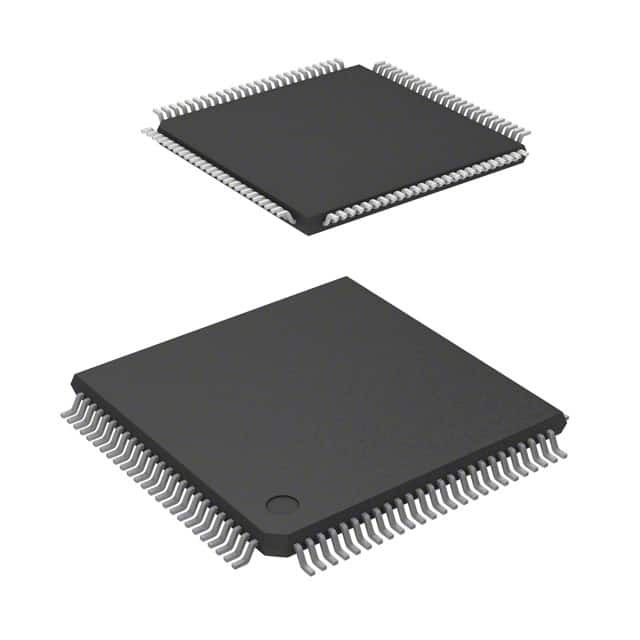

A3PN125-VQG100

SKU: 80987

Manufacturer: Microsemi

FPGA ProASIC®3 nano Family 125K Gates 130nm Technology 1.5V 100-Pin VQFP Tray

2020 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8542.39.00.01
Automotive	No
PPAP	No
Family Name	ProASIC®3 nano
Process Technology	130nm
User I/Os	71
Number of I/O Banks	2
Number of Inter Dielectric Layers	7
Number of Registers	3072
Operating Supply Voltage (V)	1.5
Device System Gates	125000
Program Memory Type	FLASH
Embedded Memory (Kbit)	36
Total Number of Block RAM	8
Device Logic Gates	125000
Number of Global Clocks	18
Device Number of DLLs/PLLs	1
Programmability	Yes
Reprogrammability Support	Yes
Copy Protection	No
In-System Programmability	Yes
Speed Grade	STD
Operating Supply Voltage-Min (V)	1.425
Operating Supply Voltage-Max (V)	1.575
I/O Voltage (V)	1.5
Operating Temperature-Min	-20
Operating Temperature-Max	85
Supplier Temperature Grade	Commercial
Packing Method	Tray
Tradename	ProASIC
Original Package	VQFP
Pin Count	100
Standard Package Method	QFP
Terminal Form	Surface Mount
Package Height	1
Package Length	14
Package Width	14
PCB changed	100
