A3PE3000L-1FGG484

SKU: 157338

Manufacturer: Microsemi

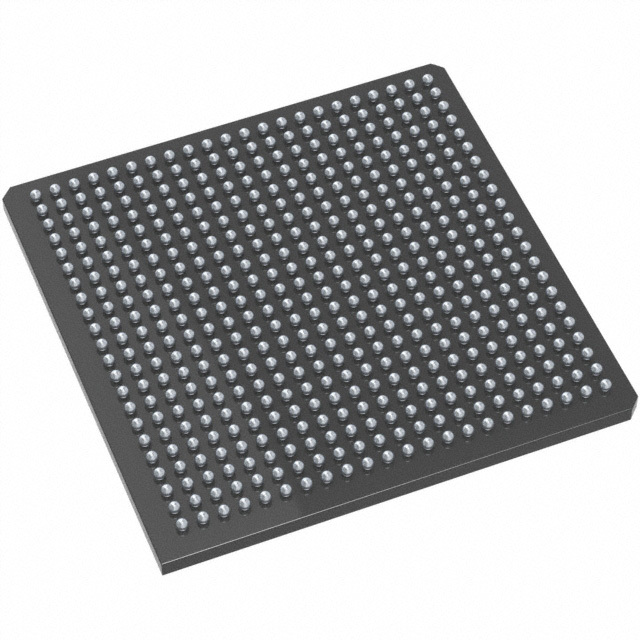

FPGA ProASIC®3EL Family 3M Gates 892.86MHz 130nm Technology 1.2V 484-Pin FBGA Tray

2130 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	3A001.a.7.a
Part Status	Active
Automotive	No
PPAP	No
Family Name	ProASIC®3EL
Process Technology	130nm
User I/Os	341
Number of I/O Banks	8
Number of Inter Dielectric Layers	7
Number of Registers	75264
Operating Supply Voltage (V)	1.2
Device System Gates	3000000
Program Memory Type	FLASH
Embedded Memory (Kbit)	504
Total Number of Block RAM	112
Device Logic Gates	3000000
Number of Global Clocks	18
Device Number of DLLs/PLLs	6
Programmability	Yes
Reprogrammability Support	Yes
Copy Protection	Yes
Opr. Frequency (MHz)	892.86
In-System Programmability	Yes
Speed Grade	1
Maximum Differential I/O Pairs	168
Maximum I/O Performance	700Mbps
Operating Supply Voltage-Min (V)	1.14
Operating Supply Voltage-Max (V)	1.26
I/O Voltage (V)	1.2
Operating Temperature-Min	0
Operating Temperature-Max	70
Supplier Temperature Grade	Commercial
Packing Method	Tray
Tradename	ProASIC
Original Package	FBGA
Pin Count	484
Standard Package Method	BGA
Terminal Form	Surface Mount
Package Height	1.73
Package Length	23
Package Width	23
PCB changed	484
