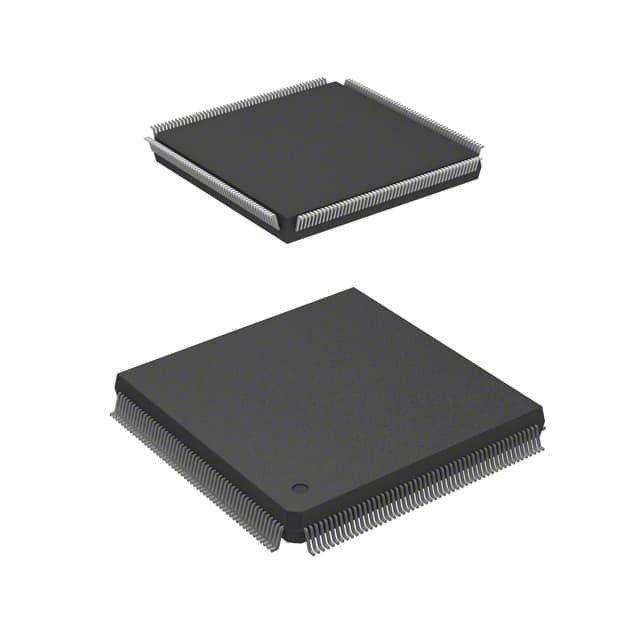

A3PE1500-PQ208

SKU: 157337

Manufacturer: Microsemi

FPGA ProASIC®3E Family 1.5M Gates 231MHz 130nm Technology 1.5V 208-Pin PQFP Tray

1940 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Not Compliant
ECCN (US)	3A001.a.7.a
Part Status	Obsolete
Automotive	No
PPAP	No
Family Name	ProASIC®3E
Process Technology	130nm
User I/Os	147
Number of I/O Banks	8
Number of Inter Dielectric Layers	7
Number of Registers	38400
Operating Supply Voltage (V)	1.5
Device System Gates	1500000
Program Memory Type	FLASH
Embedded Memory (Kbit)	270
Total Number of Block RAM	60
Device Logic Gates	1500000
Number of Global Clocks	18
Device Number of DLLs/PLLs	6
Programmability	Yes
Reprogrammability Support	Yes
Copy Protection	Yes
Opr. Frequency (MHz)	231
In-System Programmability	Yes
Speed Grade	STD
Maximum Differential I/O Pairs	65
Maximum I/O Performance	700Mbps
Operating Supply Voltage-Min (V)	1.425
Operating Supply Voltage-Max (V)	1.575
Operating Temperature-Min	0
Operating Temperature-Max	70
Supplier Temperature Grade	Commercial
Packing Method	Tray
Tradename	ProASIC
Original Package	PQFP
Pin Count	208
Standard Package Method	QFP
Terminal Form	Surface Mount
Package Height	3.4
Package Length	28
Package Width	28
PCB changed	208
