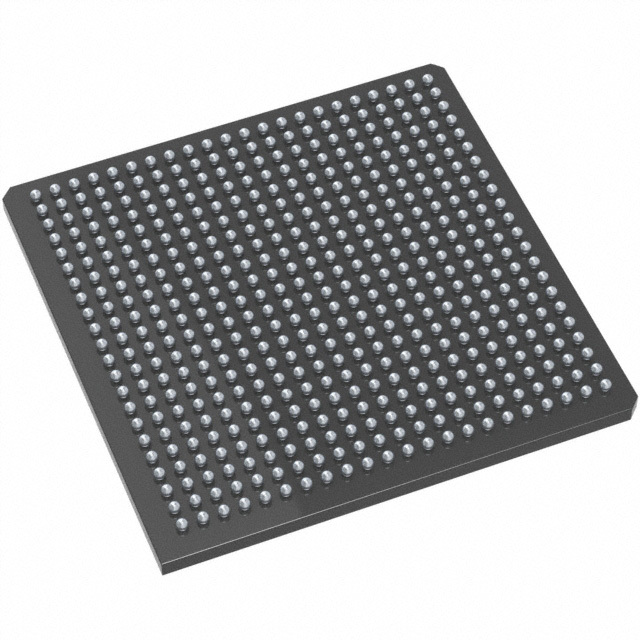

A3PE1500-FGG484I

SKU: 151897

Manufacturer: Microsemi

FPGA ProASIC®3E Family 1.5M Gates 231MHz 130nm Technology 1.5V 484-Pin FBGA Tray

20 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	3A991d.
Part Status	Active
HTS	8542.39.00.01
Automotive	No
PPAP	No
Family Name	ProASIC®3E
Process Technology	130nm
User I/Os	280
Number of I/O Banks	8
Number of Inter Dielectric Layers	7
Number of Registers	38400
Operating Supply Voltage (V)	1.5
Device System Gates	1500000
Program Memory Type	FLASH
Embedded Memory (Kbit)	270
Total Number of Block RAM	60
Device Logic Gates	1500000
Number of Global Clocks	18
Device Number of DLLs/PLLs	6
Programmability	Yes
Reprogrammability Support	Yes
Copy Protection	Yes
Opr. Frequency (MHz)	231
In-System Programmability	Yes
Speed Grade	STD
Maximum Differential I/O Pairs	139
Maximum I/O Performance	700Mbps
Operating Supply Voltage-Min (V)	1.425
Operating Supply Voltage-Max (V)	1.575
Operating Temperature-Min	-40
Operating Temperature-Max	85
Supplier Temperature Grade	Industrial
Packing Method	Tray
Tradename	ProASIC
Original Package	FBGA
Pin Count	484
Standard Package Method	BGA
Terminal Form	Surface Mount
Package Height	1.73
Package Length	23
Package Width	23
PCB changed	484
