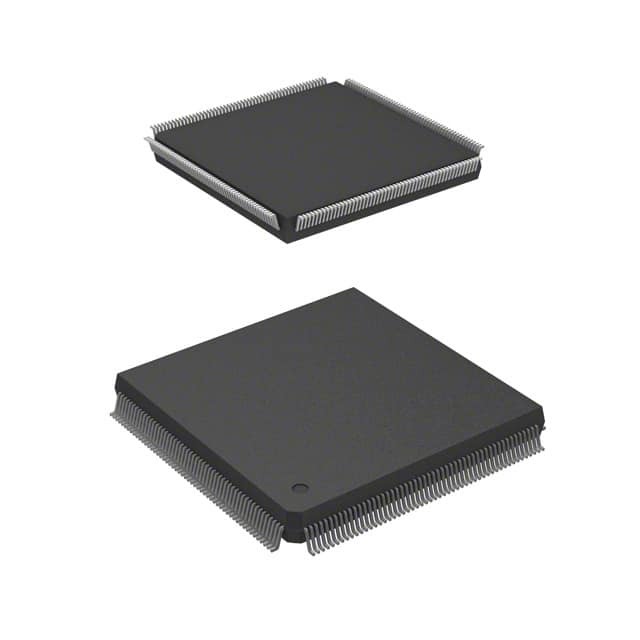

A2F200M3F-PQG208I

SKU: 66959

Manufacturer: Microsemi

FPGA SmartFusion Family 200K Gates 100MHz 130nm Technology 1.5V 208-Pin PQFP

3040 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	3A991.d.2.
Part Status	Unconfirmed
HTS	8542.39.00.01
Automotive	No
PPAP	No
Family Name	SmartFusion
Process Technology	130nm
User I/Os	113
Number of I/O Banks	6
Number of Inter Dielectric Layers	7
Number of Registers	4608
Operating Supply Voltage (V)	1.5
Device System Gates	200000
Program Memory Type	FLASH
Embedded Memory (Kbit)	64
Total Number of Block RAM	8
Device Logic Gates	200000
EMACs	1
Device Number of DLLs/PLLs	1
Maximum Supply Current (mA)	7
JTAG Support	Yes
Programmability	Yes
Reprogrammability Support	No
Copy Protection	No
Opr. Frequency (MHz)	100
In-System Programmability	No
Speed Grade	STD
Differential I/O Standards	LVDS
Single-Ended I/O Standards	LVCMOS
Maximum I/O Performance	16Gbps
Operating Supply Voltage-Min (V)	1.425
Operating Supply Voltage-Max (V)	1.575
I/O Voltage (V)	1.8
Operating Temperature-Min	-40
Operating Temperature-Max	100
Supplier Temperature Grade	Industrial
Tradename	SmartFusion
Original Package	PQFP
Pin Count	208
Standard Package Method	QFP
Terminal Form	Surface Mount
Package Height	3.4
Package Length	28
Package Width	28
PCB changed	208
