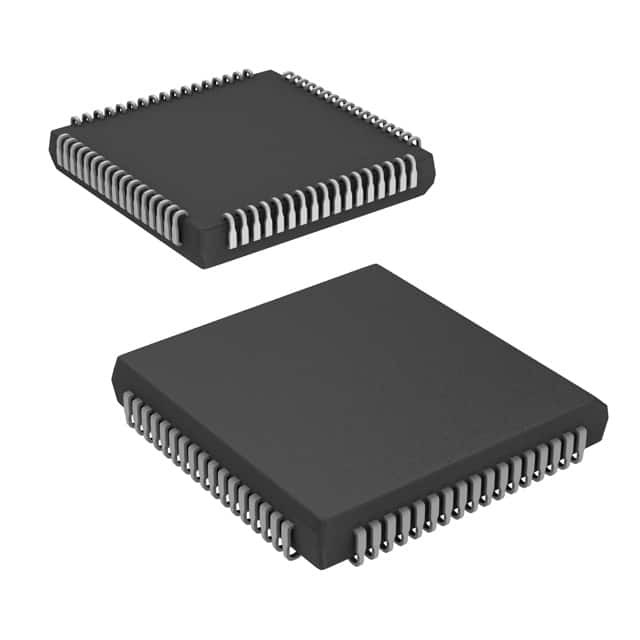

A1020B-PL68C

SKU: 137721

Manufacturer: Microsemi

FPGA ACT 1 Family 2K Gates 547 Cells 48MHz 1.0um Technology 5V 68-Pin PLCC

60 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Not Compliant
ECCN (US)	EAR99
Part Status	Obsolete
HTS	8542.39.00.01
Automotive	No
PPAP	No
Family Name	ACT 1
Process Technology	1.0um
User I/Os	57
Number of Inter Dielectric Layers	2
Number of Registers	273
Operating Supply Voltage (V)	5
Logic Elements	547
Device System Gates	6000
Program Memory Type	OTP
Device Logic Gates	2000
Device Logic Units	547
JTAG Support	No
Programmability	Yes
Reprogrammability Support	No
Copy Protection	No
Opr. Frequency (MHz)	48
In-System Programmability	No
Speed Grade	STD
Maximum Propagation Delay Time (ns)	4.5
Operating Supply Voltage-Min (V)	4.75
Operating Supply Voltage-Max (V)	5.25
Operating Temperature-Min	0
Operating Temperature-Max	70
Supplier Temperature Grade	Commercial
Tradename	ACT
Original Package	PLCC
Pin Count	68
Standard Package Method	LCC
Terminal Form	Surface Mount
Package Height	3.68(Min)
Package Length	24.23
Package Width	24.23
PCB changed	68
