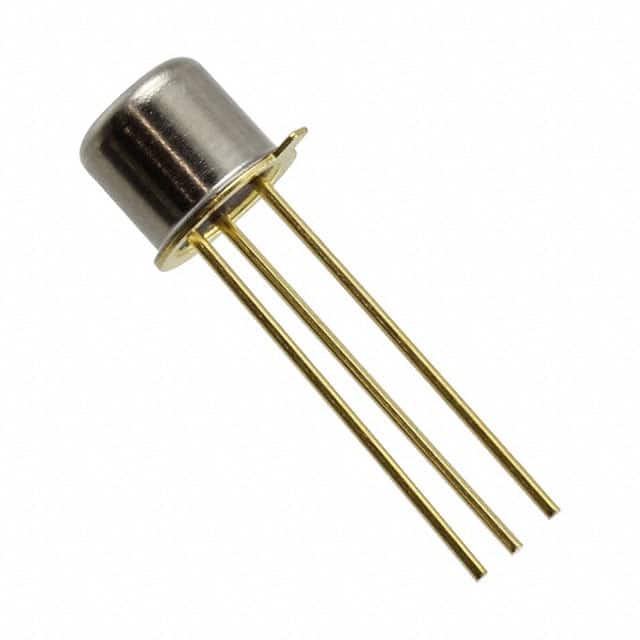

2N718A

SKU: 9791

Manufacturer: Microsemi

Trans GP BJT NPN 30V 0.5A 500mW 3-Pin TO-18 Bag

1320 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Not Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8541.29.00.75
Automotive	No
PPAP	No
Type	NPN
Product Category	Bipolar Power
Body Material	Si
Configuration	Single
Number of Elements per pcs	1
Collector Base Voltage-Max (V)	75
Collector-Emitter Voltage-Max (V)	30
Maximum Emitter Base Voltage (V)	7
Maximum Base Emitter Saturation Voltage (V)	1.3@15mA@150mA
Maximum Collector-Emitter Saturation Voltage (V)	1.5@15mA@150mA
Maximum DC Collector Current (A)	0.5
Minimum DC Current Gain	20@500mA@10V
Maximum Power Dissipation (mW)	500
Operating Temperature-Min	-65
Operating Temperature-Max	175
Packing Method	Bag
Original Package	TO-18
Pin Count	3
Standard Package Method	TO-206-AA
Diameter	5.84(Max)
Terminal Form	Through Hole
Package Height	5.33(Max)
PCB changed	3
