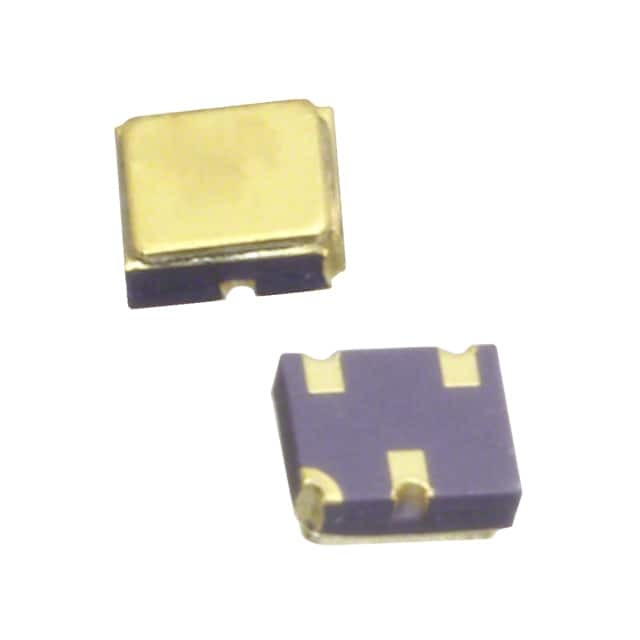

2N3700UB

SKU: 107519

Manufacturer: Microsemi

Trans GP BJT NPN 80V 1A 500mW 4-Pin Case UB Waffle

3200 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Not Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8541.29.00.95
Automotive	No
PPAP	No
Type	NPN
Product Category	Bipolar Power
Body Material	Si
Configuration	Single
Number of Elements per pcs	1
Collector Base Voltage-Max (V)	140
Collector-Emitter Voltage-Max (V)	80
Maximum Emitter Base Voltage (V)	7
Maximum Base Emitter Saturation Voltage (V)	1.1@15mA@150mA
Maximum Collector-Emitter Saturation Voltage (V)	0.2@15mA@150mA
Maximum DC Collector Current (A)	1
Minimum DC Current Gain	50@0.1mA@10V
Maximum Power Dissipation (mW)	500
Operating Temperature-Min	-65
Operating Temperature-Max	200
Packing Method	Waffle
Original Package	Case UB
Pin Count	4
Terminal Form	Surface Mount
Package Height	1.42(Max)
Package Length	3.25(Max)
Package Width	2.74(Max)
