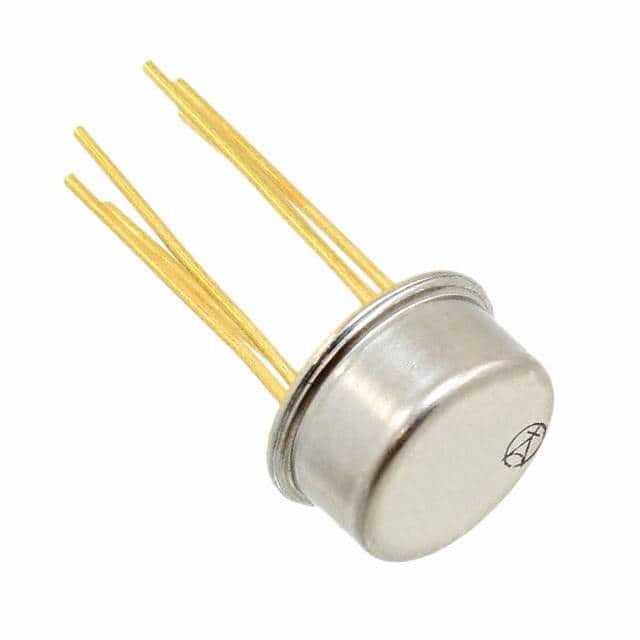

4N49

SKU: 130475

Manufacturer: Micropac Industries

Optocoupler DC-IN 1-CH Transistor With Base DC-OUT 6-Pin TO-5

1990 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8541.40.80.00
Automotive	Unknown
Output Type	DC
Input Type	DC
Output Device	Transistor With Base
Number of Channels per Chip	1
Minimum Isolation Voltage (Vrms)	700
Operating Temperature-Min	-55
Operating Temperature-Max	125
Maximum Forward Voltage (V)	1.5
Collector-Emitter Voltage-Max (V)	40
Maximum Collector Current (mA)	50
Maximum Collector-Emitter Saturation Voltage (mV)	300
Maximum Power Dissipation (mW)	300
Minimum Forward Voltage (V)	0.8
Maximum Reverse Voltage (V)	2
Typical Forward Voltage (V)	1.4
Maximum Rise Time (us)	25
Maximum Fall Time (us)	25
Maximum Forward Current (mA)	40
Supplier Temperature Grade	Commercial
Pin Count	6
Original Package	TO-5
Diameter	9.4(Max)
Terminal Form	Through Hole
Package Height	4.7(Max)
PCB changed	6
