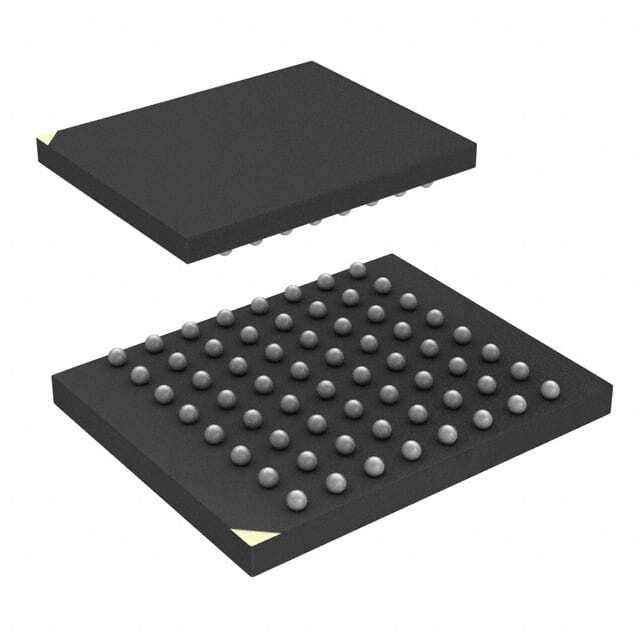

PC28F512P30BFA

SKU: 119967

Manufacturer: Micron Technology

NOR Flash Parallel/Serial 1.8V 512M-bit 32M x 16 100ns 64-Pin BGA Tray

14860 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Obsolete
HTS	8542.32.00.71
Automotive	No
PPAP	No
Cell Type	NOR
Chip Density (bit)	512M
Architecture	Sectored
Boot Block	Yes
Block Organization	Asymmetrical
Location of Boot Block	Bottom
Address Bus Width (bit)	25
Sector Size	32Kbyte x 4
Page Size	16Words
Number of Bits/Word (bit)	16
Number of Words	32M
Programmability	Yes
Timing Type	Asynchronous
Max. Access Time (ns)	100
Maximum Erase Time (s)	4/Block
Maximum Page Access Time (ns)	25
Maximum Programming Time (ms)	0.456/Word
OE Access Time (ns)	25
Process Technology	65nm
Interface Type	Parallel
Operating Supply Voltage-Min (V)	1.7
Maximum Operating Frequency (MHz)	52
Typical Operating Supply Voltage (V)	1.8
Operating Supply Voltage-Max (V)	2
Programming Voltage (V)	8.5 to 9.5
Operating Current (mA)	31
Page Read Current (mA)	16
Program Current (mA)	50
Operating Temperature-Min	-40
Operating Temperature-Max	85
Command Compatible	Yes
ECC Support	Yes
Support of Page Mode	Yes
Minimum Endurance (Cycles)	100000
Packing Method	Tray
Original Package	BGA
Pin Count	64
Standard Package Method	BGA
Terminal Form	Surface Mount
Package Height	0.78
Package Length	10
Package Width	8
PCB changed	64
