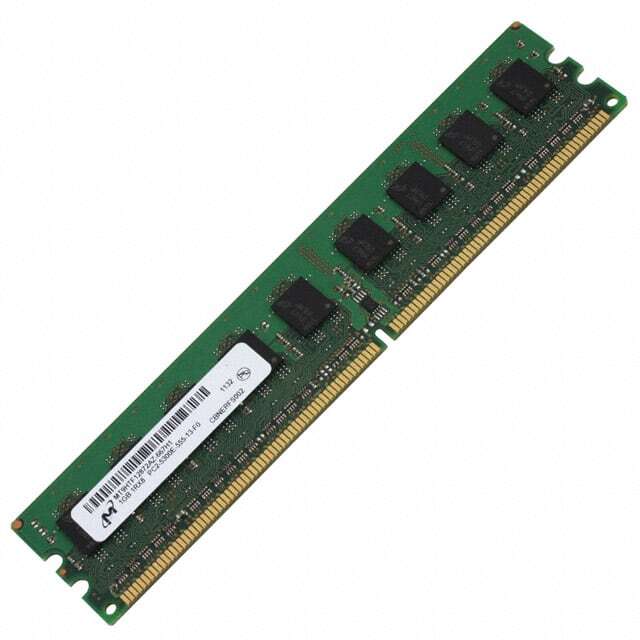

MT9HTF12872AZ-667H1

SKU: 34877

Manufacturer: Micron Technology

DRAM Module DDR2 SDRAM 1Gbyte 240UDIMM

4230 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant with Exemption
ECCN (US)	EAR99
Part Status	Obsolete
HTS	8542.32.00.32
Automotive	No
PPAP	No
Module	DRAM Module
Subcategory	DDR2 SDRAM
Module Density	1Gbyte
Organization	128Mx72
Module Type	240UDIMM
Number of Chip per Module	9
Chip Density (bit)	1G
Data Bus Width (bit)	72
Maximum Clock Rate (MHz)	667
Chip Configuration	128Mx8
Operating Supply Voltage-Min (V)	1.7
Typical Operating Supply Voltage (V)	1.8
Operating Supply Voltage-Max (V)	1.9
Operating Current (mA)	1125
Operating Temperature-Min	0
Operating Temperature-Max	70
Supplier Temperature Grade	Commercial
Module Sides	Single
ECC Support	Yes
Number of Ranks	Single
Number of Chip Banks	8
CAS Latency	5
PC Type	PC2-5300
PLL	No
SPD EEPROM Support	Yes
Self Refresh	Yes
Refresh Cycles	8K
Original Package	UDIMM
Pin Count	240
Standard Package Method	DIM
Terminal Form	Socket
Package Height	30.5(Max)
Package Length	133.5(Max)
Package Width	2.7(Max)
PCB changed	240
