MT4LSDT1664HY-13ED1

SKU: 158230

Manufacturer: Micron Technology

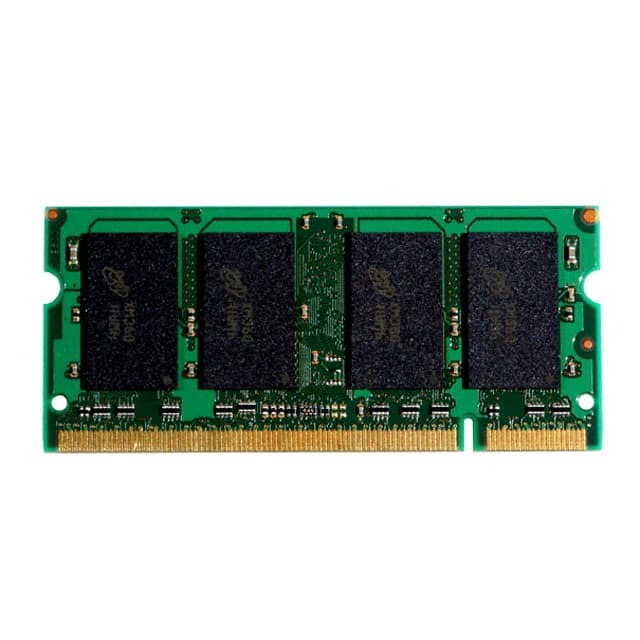

DRAM Module SDRAM 128Mbyte 144SODIMM Tray

1060 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant with Exemption
ECCN (US)	4A994
Part Status	Obsolete
Automotive	No
PPAP	No
Module	DRAM Module
Subcategory	SDRAM
Module Density	128Mbyte
Organization	16Mx64
Module Type	144SODIMM
Number of Chip per Module	4
Chip Density (bit)	256M
Data Bus Width (bit)	64
Max. Access Time (ns)	5.4
Maximum Clock Rate (MHz)	133
Chip Configuration	16Mx16
Operating Supply Voltage-Min (V)	3
Typical Operating Supply Voltage (V)	3.3
Operating Supply Voltage-Max (V)	3.6
Operating Current (mA)	540
Operating Temperature-Min	0
Operating Temperature-Max	65
Supplier Temperature Grade	Commercial
Module Sides	Double
ECC Support	No
Number of Ranks	Single
Number of Chip Banks	4
CAS Latency	2
PC Type	PC-133
PLL	No
SPD EEPROM Support	Yes
Self Refresh	Yes
Refresh Cycles	8K
Packing Method	Tray
Original Package	USODIMM
Pin Count	144
Standard Package Method	DIM
Terminal Form	Socket
Package Height	25.53(Max)
Package Length	67.72(Max)
Package Width	3.8(Max)
PCB changed	144
