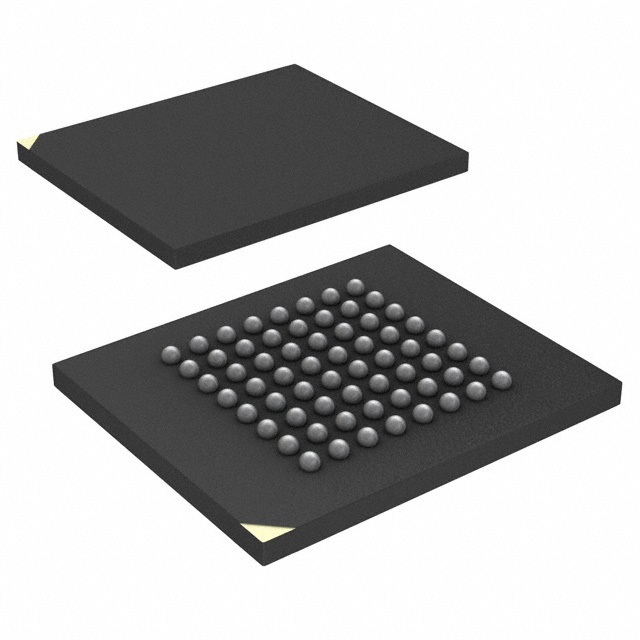

MT28EW512ABA1HPC-0AAT

SKU: 84383

Manufacturer: Micron Technology

SLC NOR Flash Parallel 3.3V 512M-bit 64M x 8/32M x 16 110ns Automotive 64-Pin LBGA

1170 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	3A991b.1.a.
Part Status	Obsolete
HTS	8542.32.00.51
Automotive	Yes
PPAP	Unknown
Cell Type	SLC NOR
Chip Density (bit)	512M
Architecture	Sectored
Boot Block	No
Block Organization	Symmetrical
Address Bus Width (bit)	25
Page Size	16Words/32byte
Number of Bits/Word (bit)	8/16
Number of Words	64M/32M
Programmability	Yes
Timing Type	Asynchronous
Max. Access Time (ns)	110
Maximum Erase Time (s)	104(Typ)/Chip
Maximum Page Access Time (ns)	20
Maximum Programming Time (ms)	0.2/Word
OE Access Time (ns)	25
Process Technology	45nm
Interface Type	Parallel
Operating Supply Voltage-Min (V)	2.7
Typical Operating Supply Voltage (V)	3
Operating Supply Voltage-Max (V)	3.6
Programming Voltage (V)	2.7 to 3.6
Operating Current (mA)	31
Page Read Current (mA)	16
Program Current (mA)	50
Operating Temperature-Min	-40
Operating Temperature-Max	105
Supplier Temperature Grade	Automotive
Command Compatible	Yes
ECC Support	No
Support of Page Mode	Yes
Minimum Endurance (Cycles)	100000
Original Package	LBGA
Pin Count	64
Standard Package Method	BGA
Terminal Form	Surface Mount
Package Height	0.76(Min)
Package Length	13
Package Width	11
PCB changed	64
