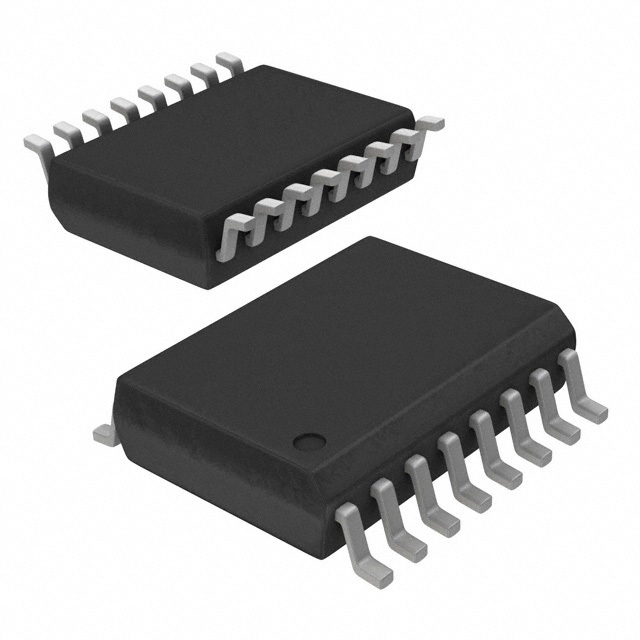

MT25QU01GBBB8ESF-0SIT

SKU: 66178

Manufacturer: Micron Technology

NOR Flash Serial (SPI, Dual SPI, Quad SPI) 1.8V 1G-bit 1G/512M/256M x 1/2-bit/4-bit 6ns 16-Pin SOP-II Tray

2280 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8542.32.00.71
SVHC	Yes
Automotive	No
PPAP	No
Cell Type	NOR
Chip Density (bit)	1G
Architecture	Sectored
Boot Block	Yes
Block Organization	Symmetrical
Location of Boot Block	Top
Address Bus Width (bit)	32
Sector Size	64Kbyte x 2048
Page Size	256byte
Number of Bits/Word (bit)	1/2/4
Number of Words	1G/512M/256M
Programmability	Yes
Timing Type	Synchronous
Max. Access Time (ns)	6
Maximum Erase Time (s)	1/Sector
Maximum Programming Time (ms)	1.8/Page
Interface Type	Serial (SPI, Dual SPI, Quad SPI)
Operating Supply Voltage-Min (V)	1.7
Maximum Operating Frequency (MHz)	166
Typical Operating Supply Voltage (V)	1.8
Operating Supply Voltage-Max (V)	2
Operating Current (mA)	55
Program Current (mA)	35
Operating Temperature-Min	-40
Operating Temperature-Max	85
Supplier Temperature Grade	Industrial
Command Compatible	Yes
ECC Support	No
Support of Page Mode	No
Minimum Endurance (Cycles)	100000
Packing Method	Tray
Original Package	SOP-II
Pin Count	16
Standard Package Method	SOP
Terminal Form	Surface Mount
Package Height	2.3
Package Length	10.3
Package Width	7.5
PCB changed	16
