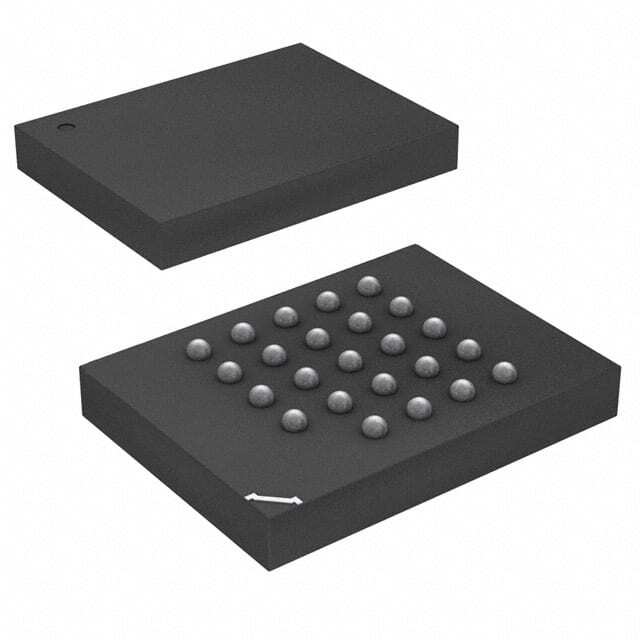

MT25QL02GCBB8E12-0AAT

SKU: 108484

Manufacturer: Micron Technology

NOR Flash Serial (SPI, Dual SPI, Quad SPI) 3V/3.3V 2G-bit 2G/1G/512M x 1/2-bit/4-bit Automotive 24-Pin TBGA

220 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	3A991b.1.a.
Part Status	Active
HTS	8542.32.00.71
Automotive	Yes
PPAP	Unknown
Cell Type	NOR
Chip Density (bit)	2G
Architecture	Sectored
Boot Block	Yes
Block Organization	Symmetrical
Location of Boot Block	Bottom
Address Bus Width (bit)	32
Sector Size	64Kbyte x 4096
Page Size	256byte
Number of Bits/Word (bit)	1/2/4
Number of Words	2G/1G/512M
Programmability	Yes
Timing Type	Synchronous
Maximum Erase Time (s)	1/Sector
Maximum Programming Time (ms)	1.8/Page
Interface Type	Serial (SPI, Dual SPI, Quad SPI)
Maximum Operating Frequency (MHz)	133
Operating Supply Voltage-Min (V)	2.7
Typical Operating Supply Voltage (V)	3
Operating Supply Voltage-Max (V)	3.6
Operating Current (mA)	85
Program Current (mA)	35
Operating Temperature-Min	-40
Operating Temperature-Max	105
Supplier Temperature Grade	Automotive
Command Compatible	Yes
ECC Support	No
Support of Page Mode	No
Minimum Endurance (Cycles)	100000
Original Package	TBGA
Pin Count	24
Standard Package Method	BGA
Terminal Form	Surface Mount
Package Height	0.8
Package Length	8
Package Width	6
