MT18VDDF12872HY-335F1

SKU: 66180

Manufacturer: Micron Technology

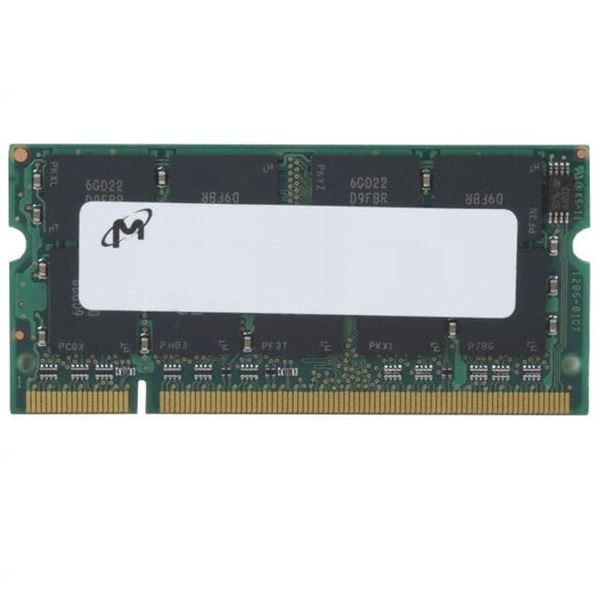

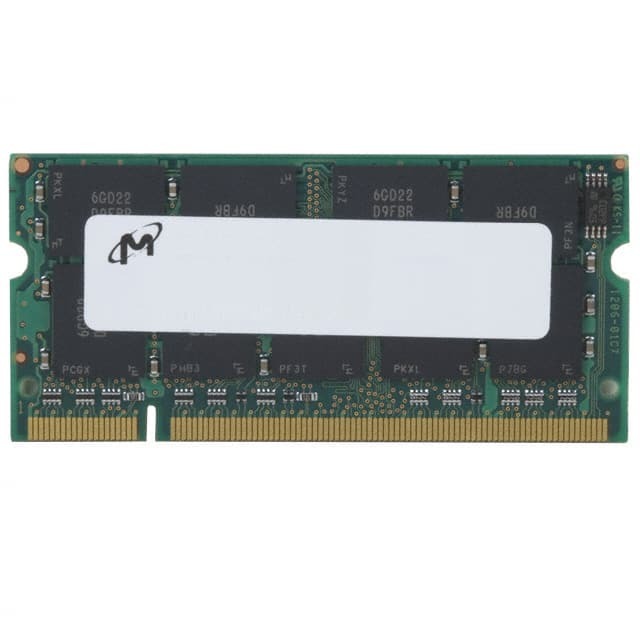

DRAM Module DDR SDRAM 1Gbyte 200SODIMM

2710 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant with Exemption
ECCN (US)	EAR99
Part Status	Obsolete
HTS	8542.32.00.36
Automotive	No
PPAP	No
Module	DRAM Module
Subcategory	DDR SDRAM
Module Density	1Gbyte
Organization	128Mx72
Module Type	200SODIMM
Number of Chip per Module	18
Chip Density (bit)	512M
Data Bus Width (bit)	72
Maximum Clock Rate (MHz)	333
Chip Configuration	64Mx8
Operating Supply Voltage-Min (V)	2.3
Typical Operating Supply Voltage (V)	2.5
Operating Supply Voltage-Max (V)	2.7
Operating Current (mA)	3690
Operating Temperature-Min	0
Operating Temperature-Max	70
Supplier Temperature Grade	Commercial
Module Sides	Double
ECC Support	Yes
Number of Ranks	Dual
Number of Chip Banks	4
CAS Latency	2.5
PC Type	PC-2700
PLL	No
SPD EEPROM Support	Yes
Self Refresh	Yes
Refresh Cycles	8K
Original Package	SODIMM
Pin Count	200
Standard Package Method	DIM
Terminal Form	Socket
Package Height	31.15(Max)
Package Length	67.72(Max)
Package Width	3.8(Max)
PCB changed	200
