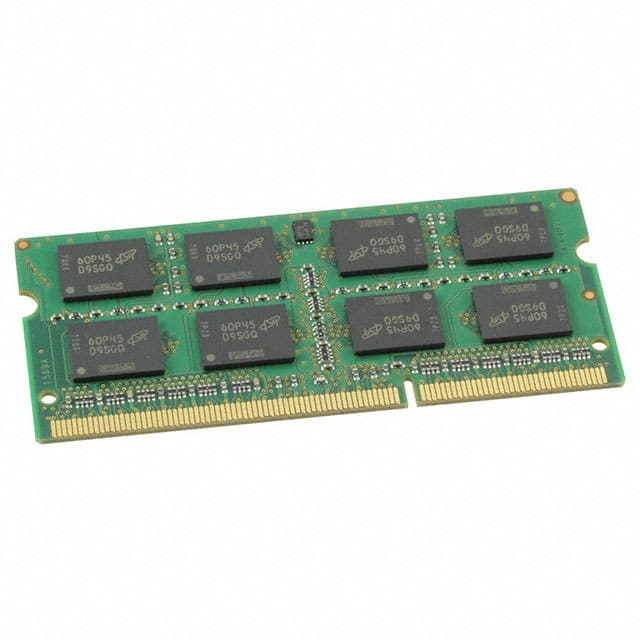

MT16KTF1G64HZ-1G9P1

SKU: 41987

Manufacturer: Micron Technology

DRAM Module DDR3L SDRAM 8Gbyte 204SODIMM Tray

1530 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	4A994
Part Status	Active
HTS	8542.32.00.02
Automotive	No
PPAP	No
Module	DRAM Module
Subcategory	DDR3L SDRAM
Module Density	8Gbyte
Organization	1Gx64
Module Type	204SODIMM
Number of Chip per Module	16
Chip Density (bit)	4G
Data Bus Width (bit)	64
Maximum Clock Rate (MHz)	1866
Chip Configuration	512Mx8
Operating Supply Voltage-Min (V)	1.283
Typical Operating Supply Voltage (V)	1.35
Operating Supply Voltage-Max (V)	1.45
Operating Temperature-Min	0
Operating Temperature-Max	70
Supplier Temperature Grade	Commercial
Module Sides	Double
ECC Support	No
Number of Ranks	Dual
Number of Chip Banks	8
CAS Latency	13
PC Type	PC3-14900
PLL	No
SPD EEPROM Support	Yes
Self Refresh	Yes
Refresh Cycles	8K
Packing Method	Tray
Original Package	SODIMM
Pin Count	204
Standard Package Method	DIM
Terminal Form	Socket
Package Height	30.15(Max)
Package Length	67.75(Max)
Package Width	3.8(Max)
PCB changed	204
