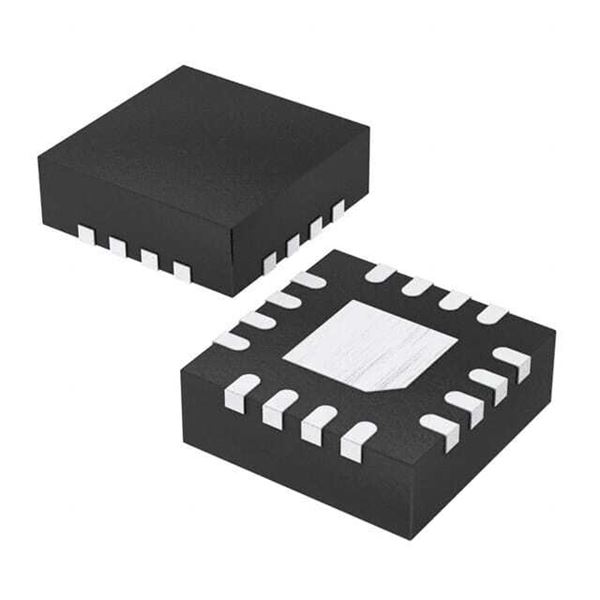

ZL40201LDG1

SKU: 72116

Manufacturer: Microchip Technology

Clock Fanout Buffer 2-OUT 1-IN 1:2 16-Pin QFN EP Tray

1550 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8542.39.00.01
Automotive	No
PPAP	No
Type	Fanout Buffer
Number of Outputs per Chip	2
Maximum Propagation Delay Time @ Maximum CL (ns)	2@3.3V
Absolute Propagation Delay Time (ns)	2
Maximum Duty Cycle	2%
Input Logic Level	LVPECL
Output Logic Level	LVPECL
Operating Supply Voltage-Min (V)	2.375
Typical Operating Supply Voltage (V)	2.5
Operating Supply Voltage-Max (V)	3.465
Maximum Quiescent Current (mA)	49(Typ)
Operating Temperature-Min	-40
Operating Temperature-Max	85
Supplier Temperature Grade	Industrial
Packing Method	Tray
Original Package	QFN EP
Pin Count	16
Standard Package Method	QFN
Terminal Form	Surface Mount
Package Height	0.88
Package Length	3
Package Width	3
PCB changed	16
