VSC3304YHV-01

SKU: 86208

Manufacturer: Microchip Technology

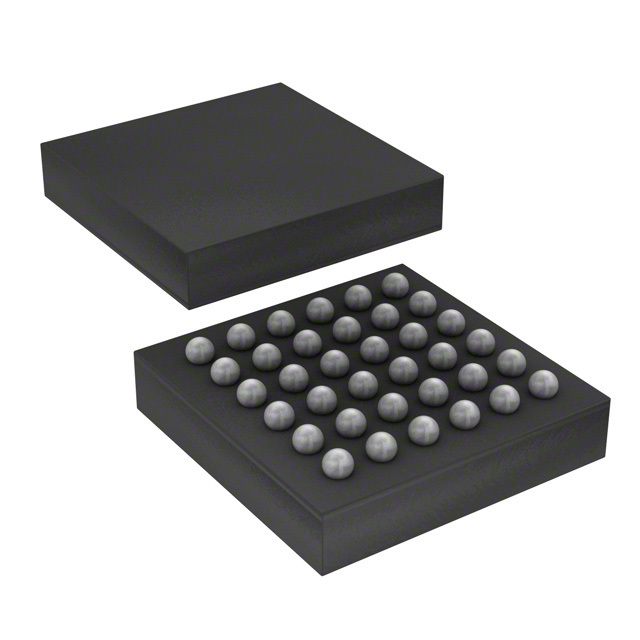

Digital Crosspoint Single 4x4 8.5Gbps 36-Pin Tray

1350 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	5A991.c
Part Status	Obsolete
HTS	8542.39.00.01
Automotive	No
PPAP	No
Array Configuration	4x4
Number of Arrays	1
On-Chip Buffers	Yes
On-Chip MUX/DEMUX	No
On-Chip Decoder	No
On-Chip Latch Circuit	No
Cascading Capability	No
Maximum Data Rate (Gbps)	8.5
Differential Data Transmission	Yes
Input Level	CMOS
Output Level	CMOS
Minimum Single Supply Voltage (V)	2.375
Typical Single Supply Voltage (V)	2.5
Maximum Single Supply Voltage (V)	2.625
Power Supply Type	Single
Line Code	No
Programmability	Yes
Operating Temperature-Min	-40
Operating Temperature-Max	100
